Quantum Magnetometers and Gyroscopes: Eliminating GPS Dependency in Aerospace Navigation

Navigating without GPS might sound like something out of a sci-fi movie, but it’s rapidly becoming a reality, especially in aerospace. The star players in this revolution are quantum magnetometers and gyroscopes.

These aren’t your grandma’s compasses; they’re incredibly precise instruments that can tell an aircraft, satellite, or even a drone exactly where it is and how it’s oriented, all without needing a single signal from space.

Let’s dive into how these remarkable devices are paving the way for GPS-independent navigation.

For a long time, GPS has been our go-to for precise location and timing. It’s incredibly useful, but it’s not without its weaknesses. Relying solely on GPS can be risky, particularly in certain environments.

Vulnerabilities of GPS

GPS signals are relatively weak and operate at high frequencies, making them susceptible to interference. This isn’t just about intentional jamming, though that’s a serious concern for military and sensitive applications.

• Jamming: Deliberate broadcasting of interfering signals can completely block GPS reception. This is a significant national security issue.
• Spoofing: A more insidious attack involves broadcasting fake GPS signals to trick receivers into believing they are somewhere they are not. This can lead to disastrous navigation errors.
• Signal Blockage: In certain geographical areas, like deep canyons, urban environments with tall buildings (“urban canyons”), or even dense foliage, GPS signals can be weakened or entirely blocked, leading to intermittent or lost navigation.
• Ionospheric Disturbances: The Earth’s ionosphere can disrupt GPS signals, especially during solar flares or geomagnetic storms. This can cause errors in position calculations.
• Multipath Errors: Signals can bounce off surfaces, arriving at the receiver via multiple paths. This can confuse the receiver and lead to inaccurate positioning.
• Limited Availability for Certain Users: While civilian GPS is widely available, access to precise positioning, especially for critical military applications, has sometimes been subject to intentional degradation or limitations.

The Need for Inertial and Absolute Navigation

These limitations highlight the need for navigation systems that don’t depend on external signals. This is where inertial navigation systems (INS) and absolute navigation techniques come into play.

• Inertial Navigation Systems (INS): These systems use accelerometers and gyroscopes to track an object’s motion from a known starting point. They are self-contained, meaning they don’t need external signals. However, they suffer from drift over time – small errors accumulate and grow, requiring periodic recalibration.
• Absolute Navigation: This refers to methods that determine position by referencing fixed points or features in the environment, rather than just tracking relative motion. Quantum sensors excel at providing absolute measurements.

In the realm of aerospace navigation, the development of Quantum Magnetometers and Gyroscopes is paving the way for eliminating GPS dependency, enhancing the accuracy and reliability of navigation systems. A related article that delves into advanced technologies and their impact on various industries can be found at NeuronWriter Review: The Best Content SEO Optimization Tool, which discusses how innovative tools are transforming content creation and optimization, much like how quantum technologies are revolutionizing navigation.

Key Takeaways

• Clear communication is essential for effective teamwork
• Active listening is crucial for understanding team members’ perspectives
• Setting clear goals and expectations helps to keep the team focused
• Regular feedback and open communication can help address any issues early on
• Celebrating achievements and milestones can boost team morale and motivation

Quantum Magnetometers: Sensing Earth’s Magnetic Field

Quantum magnetometers are at the forefront of high-precision magnetic field measurement. They leverage the quantum mechanical properties of atoms or other materials to detect extremely subtle changes in magnetic fields. Instead of relying on bulky coils or Hall effect sensors, they use phenomena like atomic resonance to achieve unparalleled sensitivity and accuracy.

How Quantum Magnetometers Work

The core principle behind most quantum magnetometers involves measuring the energy levels of atoms when they are exposed to a magnetic field.

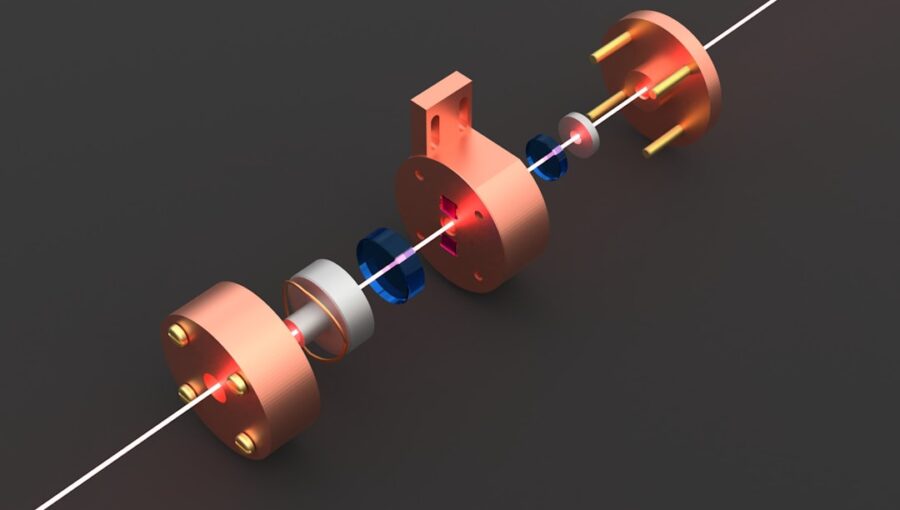

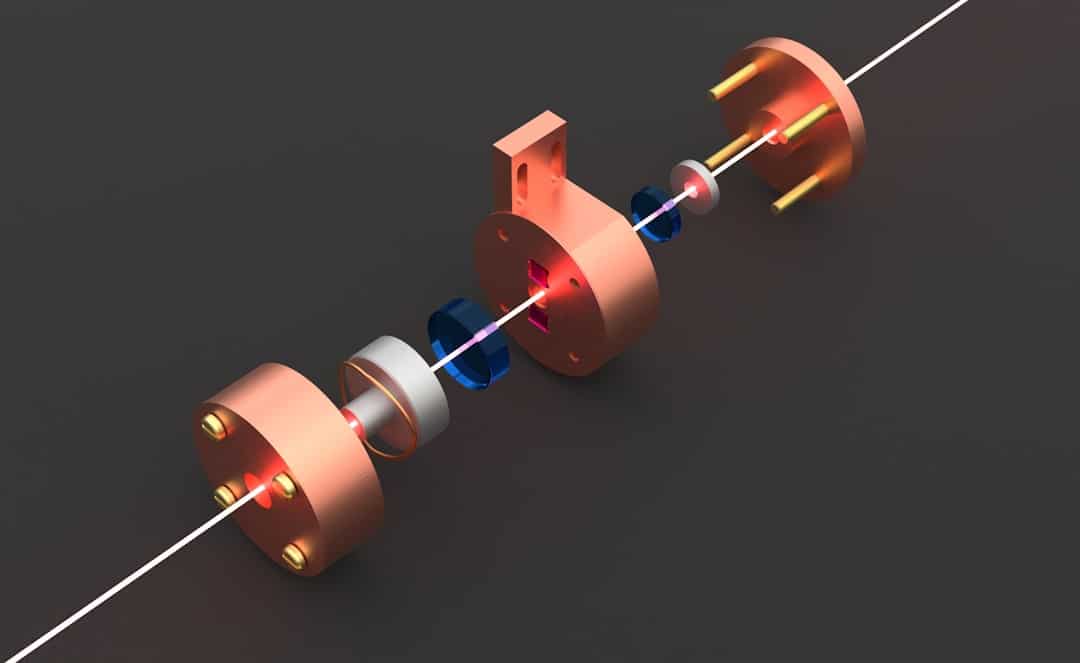

• Atomic Vapor Magnetometers: These are among the most common types. They typically use alkali metal atoms (like rubidium or cesium) vaporized in a cell. A laser is used to probe the atoms’ spin states. When a magnetic field is present, it splits these energy levels. The laser light interacts with these split levels, and the resulting changes in light absorption or fluorescence reveal the strength and direction of the magnetic field.
• Optically Pumped Magnetometers (OPMs): These are a refinement of atomic vapor magnetometers. They use light to “pump” the atoms into a specific spin state, making them more sensitive to magnetic fields.
• Nitrogen-Vacancy (NV) Centers in Diamond: Another exciting quantum sensing technology uses defects in diamond crystals called NV centers. These centers have electron spins that are sensitive to magnetic fields. By using lasers to control and read out these spin states, incredibly localized and sensitive magnetic field measurements can be made.

The Earth’s Magnetic Field as a Navigation Aid

The Earth’s magnetic field acts like a giant, invisible compass. It’s not perfectly uniform, and it varies significantly across the globe in both strength and direction. This spatial variation is the key to using it for navigation.

• Magnetic Anomaly Navigation: By precisely measuring the local magnetic field and comparing it to a pre-existing map of magnetic anomalies (variations in the field), a platform can determine its position. Think of it like reading a topographical map, but for magnetic fields.
• High Resolution Maps are Crucial: The effectiveness of magnetic anomaly navigation depends heavily on the quality and detail of the magnetic reference maps. These maps need to be extremely accurate and cover the areas where navigation is intended.
• Advantages of Magnetic Navigation:
• Passive System: It doesn’t emit any signals, making it covert.
• No External Infrastructure: It doesn’t require satellites or ground-based beacons.
• Penetrates Obstructions: Magnetic fields are less affected by weather or physical obstructions than radio signals.
• Complementary to INS: Magnetic data can be used to correct the drift of INS, providing a more robust and accurate navigation solution.

Applications in Aerospace

Quantum magnetometers are finding their way into a variety of aerospace applications, offering a way to navigate when GPS is unavailable or unreliable.

• Missile Guidance: For ballistic or cruise missiles, maintaining accuracy without GPS is paramount, especially in contested environments.
• Satellite Navigation: Satellites can use Earth’s magnetic field to orient themselves and maintain their position, reducing reliance on ground control or GPS for certain maneuvers.
• Unmanned Aerial Vehicles (UAVs): Drones operating in GPS-denied areas, such as urban canyons or during electronic warfare, can benefit greatly from magnetic navigation for autonomous flight.
• Submarine Navigation: While not strictly aerospace, the principle applies, and magnetic navigation offers a solution for submarines operating deep underwater where GPS is impossible.

Quantum Gyroscopes: Measuring Rotation Without Inertia Drift

Traditional gyroscopes, whether mechanical or optical, are essential for measuring rotation and orientation. However, even the most advanced conventional gyroscopes experience some degree of drift – a slow accumulation of error in their measurement of rotation. Quantum gyroscopes aim to overcome this limitation by exploiting quantum phenomena, offering potentially orders of magnitude improvement in accuracy and stability.

How Quantum Gyroscopes Work

Quantum gyroscopes operate on principles that are fundamentally different from classical mechanics, leading to greater precision.

• Atom Interferometers: These devices use beams of atoms that are split, made to travel different paths, and then recombined.

  The interference pattern that results is sensitive to the Sagnac effect – a phenomenon where a difference in the time it takes light (or atoms) to travel around a closed loop depends on the angular velocity of the loop. By precisely controlling and measuring this interference, highly accurate angular rates can be determined.

• Optical Cavity Ring-Down Spectroscopy (CRDS) Gyroscopes: These use lasers and precisely aligned mirrors to create a resonant cavity. As the cavity rotates, the light traveling within it experiences a phase shift that is proportional to the rotation rate.

  Measuring this phase shift allows for precise determination of angular velocity.

• Cold Atom Gyroscopes: These systems often use extremely cold atoms (near absolute zero) to minimize thermal noise and maximize sensitivity. The quantum states of these cold atoms are manipulated with lasers and magnetic fields to measure rotation.

The Advantage of Quantum Gyroscopes: Reduced Drift

The primary advantage of quantum gyroscopes over their classical counterparts is their drastically reduced drift rate.

• Inherent Stability: The quantum phenomena they exploit are inherently stable and less susceptible to environmental factors like temperature changes or vibrations that plague traditional gyroscopes.
• Absolute Measurement: In some designs, they can even offer an absolute measurement of rotation rate, rather than just a relative one, further reducing accumulated error.
• Improved INS Performance: When integrated into an Inertial Navigation System, quantum gyroscopes can significantly extend the time over which the INS can maintain accurate positional and orientational information before needing recalibration.

Applications in Aerospace

The ultra-high precision offered by quantum gyroscopes makes them ideal for demanding aerospace applications where even minute errors can have significant consequences.

• Spacecraft Attitude Control: Maintaining the precise orientation of satellites and space probes is critical for scientific instruments, communication antennas, and solar panel alignment.
• High-Precision Missile Guidance: Similar to magnetometers, quantum gyroscopes are vital for ensuring the accuracy of advanced missile systems.
• Aircraft Navigation in GPS-Denied Environments: When GPS is unavailable, the extended accuracy of quantum gyroscope-enhanced INS can provide reliable navigation for extended periods.
• Autonomous Landing Systems: For future lunar or Martian missions, or for precise aerial refueling, ultra-accurate gyroscopes are needed for controlled descent and docking.

Hybrid Navigation: The Power of Combining Sensors

The real magic happens when these advanced sensors aren’t used in isolation, but are integrated into a hybrid navigation system. Combining quantum magnetometers and gyroscopes with other navigation aids creates a robust, resilient, and highly accurate navigation solution.

Sensor Fusion: Making Different Sensors Work Together

Sensor fusion is the process of combining data from multiple sensors to achieve a more accurate, reliable, and complete picture than any single sensor could provide.

• Kalman Filters and Particle Filters: These are sophisticated algorithms used in sensor fusion. They continuously process data from various sources, estimating the state of the system (position, velocity, orientation) and updating it based on new measurements.
• Complementary Strengths: Magnetometers provide absolute position information by referencing the Earth’s magnetic field, which helps to bound the drift of INS. Gyroscopes provide precise measurements of rotation, enabling INS to track motion.
• Redundancy and Resilience: If one sensor type is temporarily unavailable or compromised, the system can continue to navigate using data from the other sensors.

The Quantum INS (QINS) Concept

A fully integrated system incorporating quantum sensors is often referred to as a Quantum Inertial Navigation System (QINS).

• Longer Navigation Windows: The primary benefit of a QINS is its ability to provide highly accurate navigation for significantly longer periods without external signal reliance. This is crucial for missions that may experience extended GPS outages.
• Improved Accuracy: The combination of ultra-low drift gyroscopes and absolute magnetic positioning leads to a navigation solution that is orders of magnitude more accurate than traditional INS.
• Enabling New Mission Capabilities: QINS can enable missions that were previously impossible due to navigation uncertainties, such as deep space exploration with no GPS, or persistent autonomous operations in contested environments.

Examples of Hybrid Architectures

• QINS + GPS (for initial alignment and periodic updates): While the goal is GPS independence, GPS can still be used for initial alignment and as a periodic cross-check to ensure absolute accuracy.
• QINS + Star Trackers: Star trackers provide absolute orientation by identifying star patterns. When combined with a QINS, they offer a very powerful navigation suite for spacecraft.
• QINS + Terrain/Map Matching: For aerial vehicles, matching sensor data (e.g., lidar, radar) to pre-loaded maps can provide positional updates that further refine QINS accuracy.

Recent advancements in quantum technology have led to the development of quantum magnetometers and gyroscopes, which promise to revolutionize aerospace navigation by reducing reliance on GPS systems. For those interested in exploring how innovative scheduling solutions can enhance operational efficiency in various industries, including aerospace, a related article discusses the top scheduling software options available this year. You can read more about it here. These technologies not only improve navigation accuracy but also pave the way for more autonomous flight systems, making them a critical area of research and development.

Eliminating GPS Dependency: The Aerospace Future

The ongoing development and implementation of quantum magnetometers and gyroscopes are fundamentally changing the landscape of aerospace navigation. The dream of navigating with pinpoint accuracy, irrespective of external signals, is no longer a distant fantasy.

Broader Implications for Aerospace Missions

The ability to navigate without GPS opens up a vast array of new possibilities and enhances existing operations.

• Enhanced Mission Autonomy: Vehicles can operate for longer periods and in more diverse environments without human intervention or constant ground control.
• Increased Operational Security: Navigating covertly without emitting signals or being susceptible to jamming is a significant advantage for military and intelligence operations.
• Exploration of Challenging Environments: Deep space missions, underwater operations (for analogous systems), and flights over polar regions (where GPS coverage can be patchy) become more feasible.
• Precision Landing and Docking: The accuracy required for automated docking in orbit or precise landings on celestial bodies can be achieved.
• Global Coverage, Anywhere: Navigation will no longer be limited by satellite visibility or signal availability.

Challenges and Future Development

Despite the immense promise, there are still challenges to overcome before quantum navigation becomes ubiquitous.

• Size, Weight, and Power (SWaP): Early quantum sensors were often bulky and power-hungry. Miniaturization and improving efficiency are ongoing research areas.
• Cost: Quantum technologies are currently expensive to develop and manufacture. As production scales up, costs are expected to decrease.
• Environmental Robustness: While more stable than classical sensors, quantum systems still need to be hardened against extreme temperatures, vibrations, and radiation encountered in space and high-performance flight.
• Maturation of Magnetic Maps: For magnetic navigation to be truly effective globally, the resolution and accuracy of magnetic anomaly maps need to be further improved.
• Integration Complexity: Developing sophisticated sensor fusion algorithms to seamlessly integrate all these different data streams requires significant engineering effort.

The Road Ahead

The journey towards GPS-independent aerospace navigation is well underway, with quantum magnetometers and gyroscopes leading the charge. As these technologies mature, we can expect to see them become standard components in a wide range of aerospace platforms, ensuring that our ventures into the skies and beyond are more reliable, secure, and capable than ever before. This isn’t just about replacing GPS; it’s about creating a new paradigm in navigation that is fundamentally more robust and versatile.

FAQs

What are quantum magnetometers and gyroscopes?

Quantum magnetometers and gyroscopes are advanced navigation technologies that use the principles of quantum mechanics to measure magnetic fields and rotation with high precision. They are designed to provide accurate navigation information without relying on GPS signals.

How do quantum magnetometers and gyroscopes eliminate GPS dependency in aerospace navigation?

Quantum magnetometers and gyroscopes eliminate GPS dependency by providing accurate and reliable navigation information using quantum principles. They can measure magnetic fields and rotation with high precision, allowing aerospace vehicles to navigate without relying on GPS signals, which can be disrupted or unavailable in certain environments.

What are the advantages of using quantum magnetometers and gyroscopes in aerospace navigation?

The advantages of using quantum magnetometers and gyroscopes in aerospace navigation include increased accuracy, reliability, and independence from GPS signals. These technologies can provide precise navigation information even in GPS-denied environments, making them valuable for military, commercial, and scientific aerospace applications.

What are some potential applications of quantum magnetometers and gyroscopes in aerospace navigation?

Potential applications of quantum magnetometers and gyroscopes in aerospace navigation include autonomous drones, spacecraft, submarines, and other vehicles that require accurate and reliable navigation information in GPS-denied environments. These technologies can also be used for precision agriculture, surveying, and geophysical exploration.

Are quantum magnetometers and gyroscopes currently being used in aerospace navigation?

Yes, quantum magnetometers and gyroscopes are currently being developed and tested for aerospace navigation applications. While they are not yet widely deployed, ongoing research and development efforts are focused on integrating these technologies into various aerospace platforms to reduce dependency on GPS signals.
