Next-Gen Pulse Oximetry: How Photoplethysmography Sensors Overcome Skin Tone Bias

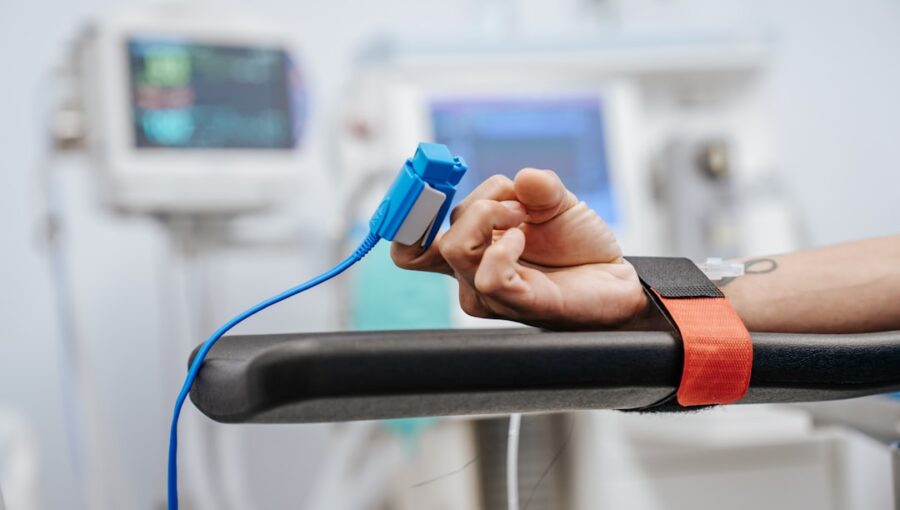

You’re probably familiar with pulse oximeters, those little clips that go on your finger to measure your blood oxygen levels. They’re super useful, especially if you have respiratory or heart conditions, or if you’re just curious about your health.

But for a long time, there’s been a nagging issue: they haven’t always been accurate for people with darker skin tones.

This means a crucial health tool wasn’t working equally well for everyone.

The good news? Things are changing. Next-generation pulse oximetry, powered by advanced photoplethysmography (PPG) sensors, is actively addressing and overcoming this skin tone bias. This isn’t just a minor upgrade; it’s a significant leap forward in making accurate health monitoring accessible to all.

The Problem: Skin Tone and Older Pulse Oximeters

Let’s get straight to the point: why has skin tone been an issue for pulse oximetry in the past? It boils down to how these devices work and the limitations of older technology.

How Traditional Pulse Oximetry Works

Traditional pulse oximeters use two LEDs (light-emitting diodes) to shine light through your finger. One LED emits red light, and the other emits infrared light.

• Absorption of Light: Your blood contains hemoglobin, the protein that carries oxygen. Oxygenated hemoglobin and deoxygenated hemoglobin absorb red and infrared light differently.
• Oxygenated hemoglobin absorbs more infrared light and transmits more red light.
• Deoxygenated hemoglobin absorbs more red light and transmits more infrared light.
• Detecting the Pulse: The device also has a photodetector on the opposite side of the finger. This detector measures how much light passes through. As your heart beats, the volume of blood in your finger changes, causing slight variations in the amount of light absorbed. The oximeter detects this pulsing signal.
• Calculating SpO2: By analyzing the ratio of how much red and infrared light is absorbed during the pulse, the device can calculate your peripheral oxygen saturation (SpO2) level – essentially, the percentage of hemoglobin carrying oxygen.

The Skin Tone Discrepancy

Here’s where the problem arises for individuals with darker skin. Melanin, the pigment that gives skin its color, also absorbs light.

• Increased Absorption: In darker skin, there’s more melanin. This means more of both the red and infrared light emitted by the LEDs is absorbed by the skin itself, before it even reaches the blood vessels.
• Signal Interference: This increased absorption by melanin can interfere with the signal from the blood. The device might struggle to differentiate between the light absorbed by deoxygenated hemoglobin and the light absorbed by melanin.
• Inaccurate Readings: As a result, older pulse oximeters could give falsely low readings for SpO2 in people with darker skin, even when their actual oxygen levels were normal. This wasn’t intentional discrimination; it was a technological limitation based on the assumption that skin had a consistent, low level of light absorption.

In the realm of advanced health monitoring technologies, the development of next-generation pulse oximetry using photoplethysmography sensors marks a significant breakthrough in addressing skin tone bias. This innovation ensures more accurate readings across diverse skin tones, enhancing the reliability of oxygen saturation measurements. For those interested in exploring how wearable technology, such as smartwatches, can integrate with various devices, a related article discusses the compatibility of Samsung smartwatches with rooted phones. You can read more about it here: Samsung Smartwatches and Rooted Phones.

Next-Gen PPG Sensors: A Smarter Approach

The key to overcoming this bias lies in the advancements within the photoplethysmography (PPG) sensors themselves. It’s not just about shining brighter lights; it’s about smarter processing and more sophisticated sensing.

Enhanced Wavelengths and Multi-Wavelength Analysis

Older devices typically used just two wavelengths (red and infrared). Newer PPG sensors are designed with a more refined approach to light.

• Broader Spectrum: Next-generation sensors often utilize a wider range of light wavelengths, including near-infrared and even green light, in addition to red. Different wavelengths are affected differently by various physiological components and skin pigments.
• Sophisticated Algorithms: By analyzing the absorption and transmission patterns across multiple wavelengths, the algorithms can better isolate the signal originating from blood and distinguish it from the signal absorbed by melanin and other skin pigments. This is akin to using multiple colored filters to get a clearer picture.
• Tuning to Specific Absorptions: Researchers have identified specific wavelengths where the differential absorption between oxygenated and deoxygenated hemoglobin is most pronounced, while the absorption by melanin is minimized. Newer sensors leverage this knowledge.

Advanced Signal Processing and Machine Learning

The real game-changer is in how the data from these sensors is processed.

• Noise Reduction: Skin tone bias is essentially a form of signal noise. Advanced signal processing techniques are employed to filter out this noise. This involves sophisticated algorithms that can identify and suppress patterns that are consistent with melanin absorption but not with blood oxygenation changes.
• Machine Learning Models: This is a huge area of development. Machine learning algorithms are trained on vast datasets that include readings from individuals with a wide spectrum of skin tones. These models learn to:
• Identify unique PPG signal characteristics: They can recognize subtle variations in the pulse waveform that are characteristic of different skin types and the presence of melanin.
• Correct for pigment interference: Based on the learned patterns, the algorithms can actively adjust the calculated SpO2 value to compensate for the estimated effect of skin pigmentation.
• Adaptive Calibration: Some systems may even feature adaptive calibration, where the device learns and adjusts its algorithm over time based on individual readings and potentially user feedback, although this is more complex to implement in a consumer device.

Real-World Implications and Improved Accuracy

The benefits of these technological advancements are not just theoretical. They translate directly into more reliable health monitoring for a wider population.

Bridging the Health Equity Gap

The most significant impact of next-gen PPG sensors is their ability to significantly reduce, and in many cases eliminate, the disparity in accuracy across different skin tones.

• Fairer Access to Data: This means that individuals who were previously underserved by pulse oximetry technology now have access to reliable SpO2 data. This is crucial for managing chronic conditions, monitoring recovery, and making informed health decisions.
• Trust and Confidence: When a medical device works consistently for everyone, it builds trust. People can have more confidence in the readings they are getting, leading to better adherence to medical advice and a more proactive approach to their health.
• Reducing Diagnostic Delays: In critical situations, an inaccurate SpO2 reading can lead to delays in diagnosis and treatment. By ensuring accuracy across all skin tones, next-gen devices can help prevent these potentially dangerous delays.

Applications Beyond Standard SpO2 Monitoring

The enhanced capabilities of next-gen PPG sensors go beyond just improving basic SpO2 measurement.

• Detecting Subtle Changes: With better signal-to-noise ratios and more sophisticated analysis, these sensors can potentially detect subtler physiological changes that might have been masked by noise in older devices. This could include early indicators of certain conditions.
• Integration with Wearables: The miniaturization and improved accuracy of PPG sensors are crucial for the burgeoning market of wearable health trackers. This allows for continuous, non-invasive monitoring of vital signs, including SpO2, on a daily basis, regardless of skin tone.
• Remote Patient Monitoring: For individuals managing chronic illnesses at home, reliable remote monitoring is essential. Next-gen PPG technology makes remote patient monitoring solutions more equitable and effective.

The Science Behind the Improvement: Deeper Dive into PPG Techniques

Let’s peek a bit further under the hood at some of the specific techniques that are making this all possible. It’s not just about adding more LEDs; it’s about being smarter with light and data.

Advanced Spectral Unmixing

This is a fancy term for a powerful concept. Think of the light that reaches the detector as a mixed cocktail of different ingredients.

• Deconstructing the Signal: Spectral unmixing algorithms aim to identify and quantify the contribution of each individual “ingredient” to the overall signal. In the context of PPG, these ingredients include:
• Oxygenated hemoglobin (HbO2)
• Deoxygenated hemoglobin (Hb)
• Melanin
• Other tissue chromophores (like water and lipids)
• Mathematical Modeling: This is achieved through complex mathematical models that analyze the absorption spectrum of each known component. By comparing the measured spectrum to the known spectral signatures of these components, the algorithm can estimate the concentration of each.
• Improved Accuracy: By accurately quantifying the amount of light absorbed by melanin, the algorithms can then mathematically subtract its effect, leaving a cleaner signal for calculating SpO2. This is far more robust than simply assuming a constant background absorption.

Pulsatility and Photoplethysmographic Waveform Analysis

The “P” in PPG is crucial: “plethysmography,” which refers to the measurement of volume changes. The pulsatile nature of blood flow is what older devices relied on. Next-gen sensors take this much further.

• Beyond Simple Ratio: Instead of just looking at the overall absorption ratio, advanced analysis examines the detailed shape and characteristics of the plethysmographic waveform. This waveform changes subtly with factors like blood pressure, vascular tone, and even the presence of different blood constituents.
• Identifying Unique Signatures: Machine learning models are trained to recognize subtle variations in this waveform that are correlated with skin pigmentation. For example, the amplitude and shape of the pulse might be attenuated or altered in specific ways by the presence of melanin.
• Temporal Filtering: Advanced temporal filtering techniques can help to isolate the pulsatile component of the signal from static components (like skin absorption) and from noise. This allows for a clearer extraction of the blood volume changes.

Multi-Site Sensing and Sensor Fusion

Some research and development are also exploring more complex sensor arrangements.

• Multiple Points of Measurement: Instead of just one sensor on a finger, some systems might utilize multiple sensing points or even sensors on different parts of the body.
• Cross-Validation: By comparing signals from different locations, the system can potentially identify and compensate for localized variations in skin pigmentation or tissue properties.
• Sensor Fusion: This involves combining data from different types of sensors (e.g., PPG with other optical sensors, or even with bioimpedance sensors) to create a more comprehensive picture of physiological status. This redundancy can help to overcome the limitations of any single sensor type. While this is more complex and might be found in research or high-end medical devices, it highlights the direction of innovation.

In the ongoing discussion about advancements in medical technology, the article on Next-Gen Pulse Oximetry highlights how photoplethysmography sensors are addressing the issue of skin tone bias in health monitoring. This innovation is crucial for ensuring accurate readings across diverse populations. For those interested in exploring the intersection of technology and user experience, a related article discusses the features of the Samsung Galaxy Chromebook 2, which showcases how modern devices are designed with inclusivity in mind. You can read more about it here.

Challenges and Future Directions

While significant progress has been made, the journey to perfect pulse oximetry for everyone isn’t entirely over.

Continued Need for Diverse Datasets

The effectiveness of machine learning and advanced algorithms is directly tied to the quality and diversity of the data they are trained on.

• Ensuring Representation: It’s crucial that datasets used for training and validating these next-gen devices include a truly representative sample of individuals across all skin tones, ages, and physiological conditions. This requires ongoing effort and collaboration within the research and medical communities.
• Addressing Rare Conditions: While skin tone bias is being addressed, ensuring accuracy for individuals with rare skin conditions or other unique physiological variations remains an area of ongoing research.

Regulatory Standards and Clinical Validation

As new technologies emerge, robust regulatory frameworks and thorough clinical validation are essential.

• Updated Standards: Regulatory bodies are increasingly recognizing the importance of addressing skin tone bias. New guidelines and testing protocols are being developed to ensure that devices are evaluated for accuracy across diverse populations.
• Real-World Testing: Clinical validation in real-world settings is critical to confirm the performance of these advanced sensors in diverse patient populations and under varying environmental conditions.

Accessibility and Cost

As with any new technology, there’s always the consideration of how accessible it will be.

• Cost-Effectiveness: The goal is to make these advancements available in affordable devices that can reach a wide audience, not just high-end medical equipment. This often involves clever engineering and manufacturing processes.
• User Education: Ensuring that users understand the capabilities and limitations of their devices, even the advanced ones, is also important for responsible health monitoring.

Conclusion: A More Equitable Future for Health Monitoring

The evolution of pulse oximetry, particularly the advancements in PPG sensor technology, represents a significant step forward in health equity. By understanding the limitations of older technology and actively developing sophisticated solutions, we are moving towards a future where accurate vital sign monitoring is truly accessible to everyone, regardless of their skin tone. This isn’t just about a better gadget; it’s about ensuring that critical health data is available to inform care and improve outcomes for all individuals. The ongoing work in this field promises even more innovative and inclusive health monitoring technologies in the years to come.

FAQs

What is pulse oximetry and how does it work?

Pulse oximetry is a non-invasive method for monitoring a person’s oxygen saturation (SpO2) levels. It works by using a sensor to measure the amount of oxygen in the blood by shining light through the skin and detecting the changes in light absorption as blood flows through the tissues.

What is photoplethysmography (PPG) and how does it improve pulse oximetry?

Photoplethysmography (PPG) is a technique that uses light to detect blood volume changes in the microvascular bed of tissue. PPG sensors improve pulse oximetry by providing more accurate readings, especially in individuals with darker skin tones, by using multiple wavelengths of light to penetrate the skin and accurately measure oxygen saturation levels.

What is skin tone bias in traditional pulse oximetry sensors?

Traditional pulse oximetry sensors have been known to provide less accurate readings in individuals with darker skin tones due to the limitations of light penetration through the skin. This can lead to inaccurate readings and potential health disparities in patient care.

How do next-gen pulse oximetry sensors overcome skin tone bias?

Next-gen pulse oximetry sensors use advanced photoplethysmography (PPG) technology to overcome skin tone bias by utilizing multiple wavelengths of light to penetrate the skin and accurately measure oxygen saturation levels. This technology allows for more accurate readings across a diverse range of skin tones.

What are the potential benefits of next-gen pulse oximetry sensors for healthcare providers and patients?

The potential benefits of next-gen pulse oximetry sensors include more accurate readings for patients with diverse skin tones, improved patient care and outcomes, and reduced health disparities in monitoring oxygen saturation levels. Healthcare providers can rely on more accurate data to make informed decisions and provide better care for all patients.
