Low Power Design Patterns for IoT Sensors

Alright, let’s talk about keeping those IoT sensors running efficiently without constantly needing a battery swap. The big idea here is that low power design patterns are essentially smart ways to structure your sensor’s hardware, software, and operational behavior so it sips power instead of guzzling it. Think of it as teaching your sensor good energy-saving habits. This isn’t just about picking low-power components, though that’s a part of it. It’s about a holistic approach that considers everything from how frequently you wake up to read data, to the way you transmit it, and even the type of data you transmit.

Why Low Power is a Big Deal for IoT

You might be thinking, “Well, isn’t everything trying to be low power these days?” And you’d be right, to an extent. But for IoT sensors, especially those deployed in remote locations, tucked away in walls, or monitoring critical infrastructure, power efficiency isn’t just a nice-to-have; it’s absolutely crucial.

The Cost of Power Consumption

Running an IoT sensor on a battery means that at some point, that battery will die. This incurs several costs:

• Replacement Costs: Someone has to physically go to the sensor, remove the old battery, and install a new one. This can be thousands of dollars per replacement for sensors in hard-to-reach places.
• Downtime: While the battery is dead, your sensor isn’t collecting data. This can mean missed critical events or gaps in your monitoring.
• Environmental Impact: Disposing of countless batteries isn’t ideal. The longer a battery lasts, the less waste generated.

Enabling New Applications

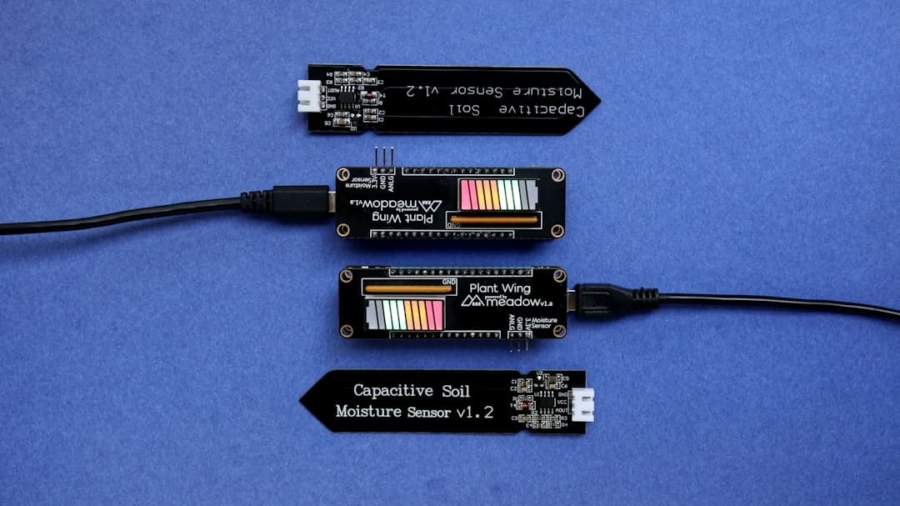

Long battery life also opens up possibilities for new IoT deployments that simply weren’t feasible before. Imagine sensors that can monitor soil moisture for years without human intervention, or track assets inside containers for months during transit. Without careful power management, these applications would be non-starters.

In exploring the realm of Low Power Design Patterns for IoT Sensors, it is essential to consider the broader context of device connectivity and functionality. A related article that delves into the importance of connectivity in modern devices is available at this link: Best Tablet with SIM Card Slot. This article discusses how tablets with SIM card slots enhance mobile connectivity, which is crucial for IoT applications that require constant data transmission while maintaining low power consumption.

Understanding Power Consumption Basics

Before diving into specific patterns, it’s helpful to quickly recap where power goes in a typical IoT sensor. It’s primarily in three areas: computation, communication, and sensing.

Computation

This is the power used by the microcontroller (MCU) itself. Every clock cycle, every instruction execution, draws power.

• Active Mode: The MCU is fully awake, running code, performing calculations. This is the hungriest state.
• Low Power Modes (Sleep/Deep Sleep): The MCU intentionally shuts down non-essential components (like parts of the CPU, peripherals, or memory) to drastically reduce power draw. It might still be able to wake up from an interrupt, but it’s not actively processing.

Transmitting data wirelessly is often the biggest power hog. Radio transceivers consume significant power, especially during transmission peaks.

• Radio Type: Different wireless technologies have different power profiles (e.g., LoRaWAN often uses less power than Wi-Fi for long distances, but Wi-Fi can burst data much faster).
• Tx Power: Higher transmission power to reach further distances means more energy used.
• Transmission Duration: The longer the radio is active, the more energy it consumes.

Sensing

The sensor itself, whether it’s measuring temperature, humidity, light, or detecting motion, also draws power.

• Sensor Type: Some sensors are inherently low-power (e.g., passive infrared), while others consume more (e.g., optical sensors with integrated LEDs).
• Sampling Rate: How frequently you power on the sensor and take a reading. More frequent readings mean more power.

Strategizing with Sleep/Wake Cycles

This is probably the most fundamental and impactful low-power design pattern. The idea here is simple: if your sensor isn’t doing anything useful, put it to sleep.

Deep Sleep First

When your sensor has finished its task (e.g., reading a sensor, processing data, transmitting), its default state should be the deepest possible sleep mode available for your chosen microcontroller. This usually means turning off almost everything and waking up only on a timer or external interrupt.

• Consider Wake-up Latency: Deep sleep modes often have a slightly longer wake-up time compared to lighter sleep states. Make sure this latency doesn’t impact your application’s responsiveness.
• Retaining State: In the deepest sleep modes, RAM might lose its contents. You’ll need to reinitialize variables or store critical data in non-volatile memory before sleeping.

Event-Driven Waking

Instead of waking up on a fixed schedule, your sensor can be roused by an external event. This is incredibly efficient if events are infrequent.

• Interrupt-driven: A PIR sensor detecting motion, a reed switch detecting a door opening, or a button press can trigger an interrupt that wakes the MCU.
• Edge Detection: Instead of constantly polling an input, configure the MCU to wake on a rising or falling edge of a signal.

Periodic Waking with Timers

Many IoT applications require periodic data collection, even if events aren’t constant. This is where timers come in.

• Long Sleep Intervals: The longer your sensor can sleep between readings, the better. If you only need temperature data every 15 minutes, sleep for 14 minutes and 55 seconds.
• RTC (Real-Time Clock): Using a dedicated low-power RTC for scheduling wake-ups can be more efficient than relying on the main MCU’s internal timers, especially in deep sleep where the main MCU clock might be shut down.

Minimizing Communication Power

As mentioned, radio communication is often the biggest power sink. Reducing its impact is critical.

Data Aggregation and Batching

Don’t send data packets one by one as they’re generated. Instead, collect several readings or events and send them all at once in a larger packet.

• Reduced Radio On-Time: The overhead of “waking up” the radio, establishing connections, and sending very small packets can be disproportionately high. Sending one larger packet is often more efficient than sending ten tiny ones.
• Buffering Data: You’ll need enough memory to temporarily store data until the next transmission window.

Choosing the Right Wireless Protocol

Not all wireless technologies are created equal when it comes to power. Match the protocol to your application’s needs.

• Sub-GHz Long Range (LoRaWAN, NB-IoT): Excellent for long-range, low-data-rate applications where power is paramount. They minimize radio “on” time.
• Bluetooth Low Energy (BLE): Ideal for short-range, low-power personal area networks, especially when connecting to smartphones or other BLE devices.
• Wi-Fi: High bandwidth, but generally very power-hungry for continuous operation. Best suited for mains-powered devices or devices that only need to connect briefly.
• Zigbee/Thread: Good for mesh networks and smart home applications, offering a balance of range and power for certain topologies.

Optimizing Transmission Power

If your radio allows it, adjust the transmission power to the minimum required to reliably reach the receiver.

• Range vs. Power: Higher power means longer range, but at a significant energy cost. If your gateway is close, use low power.
• Adaptive Power Control: Some advanced protocols or devices can dynamically adjust transmit power based on signal strength feedback from the receiver.

In the realm of low power design patterns for IoT sensors, understanding the impact of energy-efficient technologies is crucial for optimizing performance. A related article that explores innovative approaches to enhancing device longevity can be found at Unlock the Power of the Galaxy with the Samsung S22 Ultra.

This resource delves into how advancements in mobile technology can inspire new strategies for IoT applications, ultimately leading to smarter and more sustainable designs.

Smart Sensing Strategies

Even the sensors themselves can be managed for better power efficiency.

Duty Cycling Sensors

Just like the MCU, don’t keep sensors powered on constantly if you don’t need continuous readings.

• Power Gating: Use a load switch or a GPIO pin to completely cut power to the sensor when it’s not needed. This avoids quiescent current draw that can still happen even if the sensor is in a low-power mode itself.
• Pre-heating: Some sensors (like certain gas sensors) require a brief “warm-up” period before they give accurate readings. Factor this into your wake-up sequence: power on, wait, read, power off.

Intelligent Sampling

Instead of blindly taking readings at fixed intervals, try to be smarter about it.

• Threshold-Based Reporting: Only report data when it changes significantly or crosses a predefined threshold. For example, a temperature sensor might only report if the temperature changes by more than 0.5 degrees Celsius since the last reading.
• Adaptive Sampling Rates: If a parameter is stable, sample less frequently. If it’s changing rapidly, increase the sampling rate temporarily. This requires some local intelligence on the sensor.

Choosing Low-Power Sensors

When selecting components, always compare the power consumption of different sensor types.

• Quiescent Current: How much current does the sensor draw when it’s idle or in its own low-power mode? This can add up.
• Active Current: How much current does it draw when taking a reading?
• Operating Voltage: Can it operate efficiently at the sensor’s battery voltage, reducing the need for inefficient voltage regulators?

Software Optimization for Power

Hardware and communication are important, but the software running on the sensor also plays a huge role.

Efficient Code

Every CPU cycle consumes power. Writing lean, optimized code means fewer cycles for the same task.

• Avoid Busy-Waiting: Don’t use delays like delay(1000) if the MCU could be sleeping. Use timers or interrupts instead.
• Minimize Computations: If a task can be done on the backend server, consider offloading complex calculations there. The sensor’s job is often just to collect and transmit raw data.
• Use Optimized Libraries: Modern MCU SDKs often include highly optimized routines for peripheral access, FFTs, or cryptographic operations.

Data Compression

Reducing the amount of data transmitted directly translates to less radio on-time.

• Lossless Compression: Simple techniques like Run-Length Encoding (RLE) or differential encoding (sending only the change from the last value) can be effective for certain types of sensor data.
• Fixed-Point Math: Instead of sending floating-point numbers, represent values with fixed-point integers, which are often smaller and faster to process.
• Bit Packing: If your values only need a few bits (e.g., a status code from 0-7 fits in 3 bits), pack multiple values into a single byte or word.

Firmware Over-The-Air (FOTA) Updates

While FOTA itself is a power-intensive operation, robust FOTA capabilities are crucial for long-term power management.

• Bug Fixes: A bug in your firmware might be causing unnecessary power consumption. FOTA allows you to fix it without replacing the device.
• Feature Enhancements: You might develop more efficient algorithms or sampling strategies later, which can be deployed via FOTA.
• Scheduling Updates: Schedule updates during periods when the device is otherwise active or has access to more power (e.g., if it’s solar-powered and the sun is shining).

Power Harvesting and Battery Management

While not strictly a “design pattern” for sensor behavior, thoughtful power source management complements low-power design.

Micro Energy Harvesting

For extremely low-power sensors, scavenging energy from the environment can extend life indefinitely.

• Solar: Small solar panels can trickle-charge batteries for outdoor sensors.
• Peltier Elements (Thermoelectric): Convert temperature differences into electricity. Useful in industrial settings with heat sources.
• Vibration Harvesting: Piezoelectric materials can generate power from ambient vibrations, though typically for very low power budgets.
• RF Energy Harvesting: Capturing ambient radio frequency energy, usually for very low power, short-range applications.

Battery Chemistry Selection

Different battery chemistries have different characteristics that impact effective lifetime and performance.

• Primary (Non-rechargeable):
• Lithium Thionyl Chloride (Li-SOCl2): Excellent energy density, very long shelf life, and good performance over a wide temperature range. Often the go-to for remote, long-life IoT.
• Alkaline: Cheaper, but lower energy density and poorer performance at low temperatures or high current draws.
• Secondary (Rechargeable):
• Lithium-ion/Polymer (Li-ion/Li-Po): High energy density, rechargeable. Good for devices with intermittent higher power needs or when paired with energy harvesting. Requires careful charge management.
• NiMH: Lower energy density than Li-ion, but robust and widely available.

Sophisticated Power Management ICs (PMICs)

Don’t just use a simple linear regulator. Modern PMICs offer much more.

• Efficient Switching Regulators (Buck/Boost): Much more efficient than linear regulators, especially when there’s a significant voltage difference between the battery and the MCU.
• Low Quiescent Current: Look for PMICs with very low quiescent current (IQ) draw themselves, as they are continuously powered.
• Battery Fuel Gauging: Some PMICs can estimate the remaining battery capacity, allowing the sensor to gracefully shut down or report low battery status.
• Load Switching: Integrated load switches can simplify power gating to peripherals.

By thoughtfully applying these low-power design patterns, you can significantly extend the operational life of your IoT sensors, making deployments more practical, cost-effective, and environmentally friendly. It’s about designing with power in mind from the very beginning, not as an afterthought.

FAQs

What are low power design patterns for IoT sensors?

Low power design patterns for IoT sensors are techniques and strategies used to minimize power consumption in IoT sensor devices. These patterns aim to extend the battery life of IoT sensors and reduce the need for frequent battery replacements.

Why are low power design patterns important for IoT sensors?

Low power design patterns are important for IoT sensors because they enable the devices to operate for extended periods without the need for frequent battery replacements. This is crucial for IoT applications, especially in remote or hard-to-reach locations where changing batteries can be challenging.

What are some common low power design patterns for IoT sensors?

Common low power design patterns for IoT sensors include duty cycling, where the sensor is turned on and off at specific intervals, using low-power wireless communication protocols, optimizing sensor data processing, and implementing sleep modes to minimize power consumption during idle periods.

How do low power design patterns impact the performance of IoT sensors?

Low power design patterns can impact the performance of IoT sensors by extending their battery life, reducing the frequency of maintenance and battery replacements, and enabling the sensors to operate in environments where power sources are limited or not readily available.

What are the challenges associated with implementing low power design patterns for IoT sensors?

Challenges associated with implementing low power design patterns for IoT sensors include balancing power consumption with the need for timely and accurate data collection, optimizing sensor performance while minimizing power usage, and ensuring compatibility with existing IoT infrastructure and protocols.
