Training Industrial Robot Vision Models with Synthetic Data and Physics Engines

Synthetic Data: A Game-Changer for Robot Vision

So, you’re wondering about using synthetic data and physics engines to train industrial robot vision models. The short answer is a resounding “yes, it’s incredibly powerful and increasingly essential.” In a nutshell, synthetic data allows us to generate vast quantities of realistic, labeled training examples for robot vision without the huge cost and effort of collecting real-world data. Physics engines take this a step further, making those synthetic environments behave like the real world, which is crucial for robust model performance. This approach tackles some of the biggest hurdles in deploying AI-powered robots in industrial settings, from data scarcity to handling rare edge cases.

In the realm of enhancing industrial robot vision models, the use of synthetic data and physics engines has gained significant attention. A related article that explores the intersection of technology and creativity can be found at Best Free Drawing Software for Digital Artists in 2023. This article highlights various tools that digital artists can utilize, which may parallel the innovative approaches taken in training robotic systems to interpret and interact with their environments effectively.

Key Takeaways

• The training data includes information and events up to October 2023.
• Insights and knowledge are based on a wide range of sources available until the cutoff date.
• No updates or developments occurring after October 2023 are included in the training.
• Users should verify current information from reliable sources for the latest updates.
• The model’s responses reflect the context and knowledge available up to the specified date.

The Problem with Real-World Data Collection

Training any robust machine learning model requires a lot of data. For industrial robot vision, this means images or video of objects, environments, and scenarios that the robot will encounter. But collecting this data in the real world presents a unique set of challenges that often make it impractical, expensive, or even impossible.

Data Scarcity and Variety

Think about a new product line being introduced in a factory. Before a single physical item exists, how do you get images of it from every angle, under different lighting conditions, and with various levels of occlusion? You can’t. This inherent scarcity of real-world data, especially for new or rapidly changing products, is a major bottleneck.

Furthermore, achieving sufficient variety in real data is tough.

A robot might need to identify a part that’s slightly scuffed, rotated awkwardly, or partially hidden. Capturing enough real-world examples of all these variations can be a monumental task. You’d need to intentionally damage parts, set up complex occlusions, and spend countless hours repositioning objects, often in a live production environment, which is highly disruptive.

Labeling Overhead

Once you have the images, they’re just raw pixels. To train a vision model, every object of interest in those images needs to be meticulously labeled. This means drawing bounding boxes, segmentation masks, or identifying keypoints. This process is incredibly labor-intensive, time-consuming, and prone to human error. For a complex industrial task, say, picking randomly oriented objects from a bin, labeling thousands of images, each potentially containing dozens of objects, quickly becomes an insurmountable cost. The more detailed the label (e.g., pixel-level segmentation versus a simple bounding box), the higher the cost and effort.

Handling Edge Cases and Rare Events

Robots in industrial settings need to be reliable. They’ll encounter unexpected situations: a tool dropped on the floor, a component upside down, or a spill. These “edge cases” or “rare events” are precisely what can break a robot’s operation, but by their nature, they are infrequent in real-world data collection. You can’t realistically stage every conceivable failure mode or unusual scenario to capture enough training examples. Without explicit training on these scenarios, the robot’s vision system will struggle when it encounters them, leading to errors, downtime, and potentially dangerous situations.

Operational Disruption and Safety Concerns

Collecting real-world data in an active factory environment often means disrupting production. You might need to pause operations, set up cameras and lighting, or even manually manipulate parts. This leads to lost productivity and can introduce safety risks for personnel working alongside the data collection equipment or the robot itself if it’s operating in a training mode. The inherent messiness and dynamism of a factory floor also make controlled data collection difficult.

Domain Shift

Even if you manage to collect a good dataset, there’s the challenge of “domain shift.” A model trained in a perfectly lit lab environment might perform poorly when deployed on a factory floor with different lighting, reflections, and background clutter. This difference between the training domain (where data was collected) and the deployment domain (where the robot operates) can severely degrade performance, requiring continuous recalibration and re-training with new real-world data.

What is Synthetic Data?

At its core, synthetic data is artificial data generated computationally, rather than collected from the real world. For robot vision, this usually means creating 3D models of objects, designing virtual environments, and then rendering images or videos from various perspectives, under different lighting conditions, and with specified object configurations.

The Power of 3D Models

The foundation of synthetic data for vision is 3D models. These digital representations of objects are the virtual building blocks.

Instead of scanning a physical object, you either import existing CAD (Computer-Aided Design) models used in manufacturing or create them from scratch using 3D modeling software. These models contain rich information: geometry, texture, material properties, and sometimes even physical attributes like mass.

Virtual Environments and Scenes

Once you have 3D object models, you place them within a virtual environment. This environment can be a simplified representation of a factory cell, a workbench, or even just a generic studio setting.

You can then populate this scene with virtual cameras, light sources, and other contextual elements like conveyors, bins, or other machinery. The beauty here is control: you precisely dictate where objects are, how they’re oriented, and what the lighting looks like.

Procedural Generation

The real magic happens with procedural generation. Instead of manually arranging each scene, algorithms are used to automatically create a vast number of unique scenarios.

This could involve:

• Randomized object placement: Objects can be placed randomly within a defined volume, mimicking how they might appear in a bin or on a conveyor.
• Varying orientations and scales: Each object can be rotated along multiple axes and scaled within a reasonable range.
• Diverse lighting conditions: Light sources can be moved, their intensity changed, and their color varied to simulate different times of day, artificial lighting, or shadows.
• Occlusion variation: Other objects or parts of the environment can be randomly placed to occlude the target object partially.
• Adding noise and imperfections: To bridge the “reality gap” (the difference between synthetic and real images), synthetic data can deliberately introduce noise, blur, texture variations, and even simulated dirt or damage.

Automatic Labeling

One of the greatest benefits of synthetic data is that labels come for free. When you render an image from a virtual scene, the system already knows the exact position, orientation, and identity of every object. This information can be automatically extracted and formatted into precise labels like bounding boxes, 3D bounding boxes, pixel-level segmentation masks, depth maps, surface normals, and even optical flow, without any human intervention.

This eliminates the colossal manual labeling overhead associated with real data.

Physics Engines: Bringing Realism to the Virtual World

While simply rendering 3D models gives you synthetic images, adding a physics engine injects a critical layer of realism. A physics engine is software that simulates physical laws like gravity, collisions, friction, and inertia within a virtual environment. For robot vision, this isn’t just a nice-to-have; it’s often essential for generating truly useful training data.

Simulating Realistic Interactions

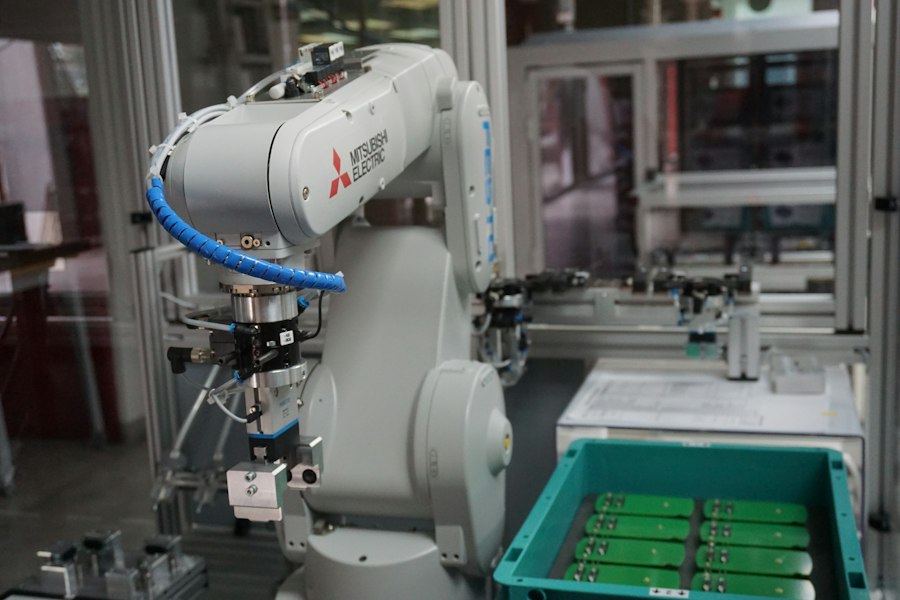

Imagine a robot trying to pick up a part from a bin. The way parts are stacked, how they tumble when disturbed, and how they rest against each other are all governed by physics. Without a physics engine, objects in your synthetic scenes might float unrealistically, clip through each other, or simply appear in impossible configurations. A physics engine allows you to:

• Simulate gravity: Objects will fall and settle naturally.
• Handle collisions: When objects collide, they interact realistically, bouncing, sliding, or stacking based on their material properties. This is crucial for bin-picking scenarios where objects are often in contact.
• Incorporate friction: Friction dictates how objects slide or grip surfaces, affecting their final resting positions and stability.
• Model material properties: You can define properties like mass, elasticity, and density for your 3D models, influencing how they behave under physical forces.

Generating Realistic Poses and Configurations

One of the most valuable contributions of physics engines is generating realistic object poses and configurations. Instead of just randomly rotating and placing objects, you can “drop” them into a virtual bin and let the physics engine simulate them settling. This leads to configurations that are physically plausible and representative of what a robot would actually see in a real-world bin. This is especially important for tasks like:

• Bin picking: Generating varied and realistic arrangements of parts in a bin, accounting for how they settle.
• Assembly: Simulating how parts might fit or rest against each other before being fully assembled.
• Object manipulation: Understanding how an object might shift or rotate when nudged or grasped.

Dynamics and Motion Blur

Physics engines aren’t just for static poses; they can simulate dynamics over time. This means you can generate sequences of images where objects are moving under physical forces. This is incredibly useful for:

• Tracking: Training models to track moving objects on a conveyor belt.
• Predicting motion: Helping robots anticipate how an object might move when interacted with.
• Simulating motion blur: As objects move, real cameras capture motion blur. Physics engines, when integrated with a renderer, can accurately simulate this, further bridging the reality gap.

Interacting with the Robot’s End-Effector

Many advanced physics engines can simulate the interaction of a robot’s end-effector (gripper) with objects. This allows you to generate data for:

• Grasping analysis: Training models to understand stable grasp points by seeing how objects respond to virtual gripper contact.
• Collision avoidance: Simulating potential collisions between the robot arm and the environment or objects.
• Pushing and poking: Generating data for strategies where the robot might need to manipulate objects by pushing them to a better graspable position.

Popular physics engines used in robotics simulation and synthetic data generation include NVIDIA PhysX, Bullet Physics, and MuJoCo. These engines provide the computational backbone for creating dynamic and believable virtual worlds for robot training.

In the realm of advancing industrial automation, the innovative approach of training robot vision models using synthetic data and physics engines has garnered significant attention. A related article discusses various technological advancements that are shaping the future of robotics and automation, highlighting the importance of integrating synthetic data for improved model accuracy. For more insights on this topic, you can explore the article at Hacker Noon, which covers a range of topics across the tech sector.

The Advantages of Training with Synthetic Data

Now that we understand what synthetic data and physics engines bring to the table, let’s explore the practical advantages of using this approach for industrial robot vision.

Abundance of Data and Variety

This is perhaps the most significant benefit. With synthetic data, the concept of “data scarcity” virtually disappears. You can generate millions, even billions, of unique training images and corresponding labels with minimal incremental cost. This allows for:

• Extensive Coverage: Covering a much wider range of object poses, lighting conditions, background variations, and occlusions than possible with real data.
• Exhaustive Edge Case Generation: Deliberately generating images of rare events or difficult scenarios (e.g., heavily occluded objects, unusual orientations, or simulated defects) to make your model robust to real-world anomalies.
• Rapid Iteration: If your model performs poorly on a specific scenario, you can quickly generate more synthetic data tailored to that scenario, retrain, and improve performance.

Perfect and Consistent Labels

As mentioned, labels come for free and are perfectly accurate. There’s no human error in bounding box placement or segmentation masks. This precision is invaluable for training highly accurate vision models, especially for tasks requiring fine-grained understanding like pose estimation or precise pick-and-place. Consistent labeling across vast datasets also helps the model learn reliable features without being confused by labeling inconsistencies found in human-annotated data.

Reduced Cost and Time

Think about the alternative: hiring a team to collect and label thousands of hours of real-world footage. Synthetic data drastically cuts down on:

• Data collection costs: No need for physical setup, cameras, lighting, or personnel.
• Labeling costs: Eliminates the need for manual annotation.
• Downtime costs: No disruption to production lines for data capture.
• Time to deployment: You can start training models before physical prototypes even exist, accelerating the development cycle for new products or processes.

Safe Training for Hazardous or Complex Scenarios

Some industrial environments are dangerous, or certain tasks are inherently risky. Training a robot directly in such an environment or on sensitive equipment poses risks to both personnel and machinery. Synthetic data allows you to simulate these scenarios safely and repeatedly, training the robot’s vision system without any real-world hazards. This is particularly useful for tasks involving:

• Toxic materials: Handling dangerous chemicals.
• High temperatures or pressures: Operating in extreme conditions.
• Fragile or expensive components: Practicing manipulation without risk of damage.

Overcoming the Reality Gap: Domain Randomization

While synthetic data offers immense benefits, there’s always a “reality gap” – the difference in appearance between synthetic and real images. Models trained purely on highly photorealistic synthetic data might struggle when deployed in the real world because real images often contain subtle variations in texture, lighting, camera noise, and environmental clutter that weren’t present in the synthetic dataset.

This is where a technique called Domain Randomization comes in. Instead of trying to make synthetic data look exactly like real data (which is incredibly difficult and often unnecessary), the goal of domain randomization is to make the synthetic data so varied that the vision model learns to ignore the synthetic-specific characteristics and focus on the fundamental features of the objects.

How Domain Randomization Works

Domain randomization involves randomizing as many non-essential aspects of the synthetic scene as possible during generation. This includes:

• Lighting: Randomizing the number, position, color, and intensity of light sources.
• Textures: Applying random textures to objects, backgrounds, and even the environment. This can range from abstract patterns to photos of real-world materials.
• Camera parameters: Randomizing intrinsic camera parameters (e.g., focal length, distortion) and extrinsic parameters (e.g., position, orientation).
• Backgrounds: Using a diverse set of random backgrounds, including real-world images or abstract patterns.
• Object properties: Randomizing subtle material properties, color variations, and even minor deformations.
• Noise and artifacts: Adding synthetic camera noise, motion blur, and other common image artifacts.

The idea is that by presenting the model with an extremely wide and varied distribution of synthetic appearances, it becomes robust enough to generalize to the subtle differences of the real world.

It learns to recognize the core object features regardless of the “domain” it’s presented in.

It essentially makes the model “domain agnostic.”

Sim-to-Real Transfer

The ultimate goal of using synthetic data is successful “sim-to-real” transfer – where a model trained in simulation performs effectively on a real robot in a real environment. Domain randomization is a key technique for achieving this, but it’s not the only one. Other strategies include:

• Progressive Training: Starting with simpler synthetic data and gradually introducing more complex or realistic elements.
• Fine-tuning with Real Data: Training primarily with synthetic data, then collecting a smaller set of real-world data to fine-tune the model, effectively “bridging” the remaining reality gap. This is a common and highly effective hybrid approach.
• Adversarial Training: Using generative adversarial networks (GANs) to generate synthetic images that are hard to distinguish from real ones, or to adapt the synthetic domain to be more realistic.

Implementation Steps and Best Practices

Implementing a synthetic data pipeline for industrial robot vision involves several key stages and adherence to best practices.

1. Define Your Vision Task and Requirements

Before generating any data, clearly define what your robot needs to see and do.

• Object detection: Identify specific objects in an image.
• Object recognition: Classify what an object is.
• Pose estimation: Determine the 3D position and orientation of an object.
• Segmentation: Identify the pixel-level boundaries of an object.
• Grasping point detection: Find suitable locations for a gripper to grasp an object.

Understand the specific output format required for your downstream robot control system (e.g., 6D pose, 2D bounding box, depth map). Also, consider the required accuracy, speed, and robustness.

2. Acquire or Create 3D Models

High-quality 3D models are fundamental.

• CAD Models: If you’re working with manufactured parts, CAD models are often available directly from engineering departments. These are usually very accurate.
• 3D Scanning: For organic shapes or objects without CAD, 3D scanners (e.g., structured light, lidar) can create digital models.
• Modeling Software: If CAD or scans aren’t available, you might need to model objects from scratch using software like Blender, Maya, or SolidWorks.
• Material Properties: Ensure your models have appropriate textures and material properties (e.g., reflective, matte, translucent) to simulate real-world appearance accurately.

3. Choose a Simulation/Rendering Engine

You’ll need a platform to create your virtual scenes and render images.

• Game Engines (Unity, Unreal Engine): These are powerful, highly visual, and offer excellent photorealism and physics engines. They often have strong communities and extensive asset libraries.
• Dedicated Simulators (Gazebo, Isaac Sim): Gazebo is widely used in ROS (Robot Operating System) and offers good physics. NVIDIA Isaac Sim, built on Omniverse, is specifically designed for robotics simulation, offering advanced physics, photorealism, and seamless integration with synthetic data generation tools.
• Custom Renderers: For highly specialized needs, you might use a custom renderer or a rendering API like OpenGL or Vulkan directly, though this requires more development effort.

4. Implement Procedural Generation and Domain Randomization

This is where you automate the creation of diverse scenes.

• Scripting: Write scripts (e.g., Python scripts for Unity, Unreal, or Isaac Sim) to control object placement, orientation, lighting, camera views, and background textures.
• Randomization Strategy: Systematically randomize various aspects of the scene:
• Object transformations: Position (x, y, z), rotation (roll, pitch, yaw), and scale within reasonable bounds.
• Lighting: Number of lights, light types (point, directional, spot), colors, intensities, and positions.
• Textures and materials: Randomly apply different textures to objects and surfaces, including variations in shininess, roughness, and color.
• Backgrounds: Use a diverse dataset of real-world images as backgrounds or procedurally generated abstract patterns.
• Occluders: Introduce random “junk” objects or simple shapes to partially obscure target objects.
• Camera parameters: Randomize focal length, field of view, and add synthetic lens distortion or noise.
• Physics Engine Integration: Use the physics engine to simulate realistic settling, stacking, and interactions, especially for bin-picking scenarios. “Dropping” objects into a bin multiple times will yield unique, physically plausible arrangements.

5. Generate and Export Labeled Data

Once your scene generation scripts are ready, run them to create your dataset.

• Batch Processing: Generate thousands to millions of images in a fully automated fashion.
• Label Extraction: Automatically extract all necessary labels (2D/3D bounding boxes, segmentation masks, depth maps, 6D poses) alongside each rendered image.
• Data Format: Export data in formats compatible with your machine learning framework (e.g., COCO, YOLO, KITTI for detection; custom formats for pose estimation).

6. Train Your Vision Model

Use the generated synthetic data to train your deep learning models.

• Choose Architecture: Select an appropriate neural network architecture (e.g., Faster R-CNN, YOLO, Mask R-CNN for detection/segmentation; specialized networks for pose estimation).
• Training Frameworks: Use popular deep learning frameworks like TensorFlow, PyTorch, or Keras.
• Pre-training: Often, models are pre-trained on large real-world datasets (like ImageNet) and then fine-tuned with synthetic data.
• Monitor Metrics: Track training loss, validation accuracy, and other relevant metrics to ensure the model is learning effectively.

7. Evaluate and Iterate (Sim-to-Real Validation)

This is a critical step to ensure your synthetic data strategy is working.

• Real-world Testing: Deploy the trained model on a real robot in the target industrial environment.
• Performance Metrics: Evaluate the model’s performance on real data using metrics like mean Average Precision (mAP), pose error, or success rate.
• Reality Gap Analysis: If performance is lacking, analyze where the model fails. Is it due to lighting differences? Unexpected occlusions? Textures not seen in synthetic data?
• Iterate on Synthetic Data: Use this feedback to refine your synthetic data generation pipeline. Add more randomization, introduce new textures, or simulate specific failure modes that were observed in the real world. This iterative loop of synthetic data generation, training, and real-world testing is key to robust sim-to-real transfer.
• Hybrid Training: Consider using a small amount of real data for fine-tuning after initial training on a large synthetic dataset. This often provides the best of both worlds.

Best Practices

• Quality 3D Models: Garbage in, garbage out. High-quality 3D models are paramount.
• Diverse Randomization: Don’t skimp on the variety of randomizations. The more diverse your synthetic data, the more robust your model will be.
• Iterative Refinement: Synthetic data generation is rarely a one-shot process. Be prepared to iterate and improve your generation pipeline based on real-world testing.
• Balance Realism and Randomization: While realism helps, don’t strive for perfect photorealism at the expense of randomization. Often, highly randomized but less photorealistic data outperforms highly photorealistic but less varied data.
• Metadata Tracking: Keep track of the parameters used to generate each synthetic image. This can be invaluable for debugging and understanding what types of synthetic data lead to better performance.
• Focus on the Task: Generate data that is directly relevant to the robot’s task. Don’t waste computational resources generating irrelevant variations.
• Collaboration: Work closely with robot operators and engineers to understand the real-world challenges and incorporate them into your synthetic data generation.

By following these steps and best practices, industrial companies can effectively leverage synthetic data and physics engines to train highly capable and reliable robot vision models, significantly accelerating automation deployment and reducing costs.

FAQs

What is the purpose of training industrial robot vision models with synthetic data and physics engines?

Training industrial robot vision models with synthetic data and physics engines helps improve the accuracy and robustness of the models by simulating various real-world scenarios and conditions.

How does synthetic data contribute to the training of industrial robot vision models?

Synthetic data allows for the generation of large amounts of diverse and labeled data, which is essential for training deep learning models effectively. It helps in reducing the need for manual data collection and annotation.

What role do physics engines play in training industrial robot vision models?

Physics engines simulate the physical interactions and dynamics of objects in a virtual environment, providing realistic scenarios for training industrial robot vision models. This helps in enhancing the models’ understanding of the real-world environment.

What are the benefits of using synthetic data and physics engines for training industrial robot vision models?

Some benefits include cost-effectiveness, scalability, and the ability to simulate complex and diverse scenarios that may be challenging to replicate in the real world. It also helps in improving the generalization and performance of the models.

Are there any limitations to training industrial robot vision models with synthetic data and physics engines?

While synthetic data and physics engines offer many advantages, there may be challenges in accurately modeling all real-world scenarios and dynamics. Additionally, the performance of the models in the real world may vary from their performance in simulated environments.
