Liquid metal batteries offer a compelling solution for grid-scale renewable energy storage due to their unique properties that address many of the limitations of traditional battery technologies. Essentially, they use molten metals and salt electrolytes at high temperatures to store and release electricity efficiently. This design allows for long cycle life, high power output, and the use of abundant, inexpensive materials, making them particularly well-suited for buffering intermittent renewable sources like solar and wind power.
Renewable energy is fantastic, but it’s not always on. The sun doesn’t shine at night, and the wind doesn’t always blow. That’s where grid-scale storage comes in.
The Intermittency Problem
Imagine a solar farm pumping out tons of electricity at midday. If that energy isn’t used immediately, it’s either wasted or requires conventional power plants to ramp down, then back up again later. This “intermittency” makes integrating renewables into the grid a real headache without effective storage.
Balancing Supply and Demand
Our electricity grid needs a constant balance between how much power is being generated and how much is being consumed. When renewables fluctuate, storage acts like a shock absorber, soaking up excess energy when there’s plenty and releasing it when demand is high or generation drops.
Grid Stability and Reliability
Beyond just balancing, storage can help stabilize the grid by providing ancillary services. Think of it as keeping the power quality good – maintaining voltage and frequency – which is crucial for preventing blackouts and ensuring reliable electricity delivery.
In exploring the transformative potential of liquid metal batteries for grid-scale renewable storage, it’s interesting to consider how advancements in technology can enhance various sectors. A related article that delves into innovative tools for optimizing digital strategies is available at RankAtom: The Game-Changing Keyword Research Tool. This resource highlights the importance of leveraging cutting-edge technology, much like liquid metal batteries, to improve efficiency and effectiveness in different fields.
Key Takeaways
- Clear communication is essential for effective teamwork
- Active listening is crucial for understanding team members’ perspectives
- Setting clear goals and expectations helps to keep the team focused
- Regular feedback and open communication can help address any issues early on
- Celebrating achievements and milestones can boost team morale and motivation
How Liquid Metal Batteries Work Their Magic
The core idea behind liquid metal batteries is pretty clever: using materials that are liquid at high temperatures. This design offers some significant advantages over solid-state batteries.
The Basic Setup
A liquid metal battery typically consists of three liquid layers: a molten metal anode (the negative electrode), a molten salt electrolyte in the middle, and another molten metal or alloy cathode (the positive electrode) at the bottom. These layers have different densities and don’t mix, similar to oil and water.
Charge and Discharge Cycles
When charging, ions move from the cathode through the molten salt electrolyte to the anode, where they react with the liquid metal. During discharge, the process reverses, generating an electrical current. The molten state of the active materials means there are no solid-state diffusion limitations, allowing for very fast reactions.
High-Temperature Operation
These batteries operate at elevated temperatures, typically between 400 and 500 degrees Celsius (750 to 930 degrees Fahrenheit). While this might sound like a drawback, it’s actually key to their performance. At these temperatures, the electrode materials and electrolyte are molten, ensuring rapid charge and discharge kinetics.
Advantages of Being Molten
- Fast Kinetics: Liquid interfaces allow for extremely fast charge and discharge rates, crucial for grid applications.
- Self-Healing: If dendrites (spiky growths) form, they tend to melt back into the liquid, preventing short circuits that plague some solid-state batteries.
- Long Cycle Life: Without solid-state degradation mechanisms like cracking or delamination, these batteries can undergo thousands of charge/discharge cycles.
Managing the Heat
Operating at high temperatures requires careful thermal management. The good news is that the heat generated during cycling can often be used to maintain the operating temperature, reducing external heating requirements once the battery is running. Insulation plays a critical role here.
Key Advantages for Grid-Scale Storage
Liquid metal batteries bring a specific set of benefits that make them particularly well-suited for large-scale energy storage.
Long Lifespan and Durability
Unlike many battery chemistries that degrade over time with repeated cycling, liquid metal batteries show remarkable longevity.
Thousands of Cycles
Due to their liquid nature, there’s no mechanical stress or dendrite formation issues that typically limit the cycle life of solid-state batteries. This means they can be charged and discharged thousands, even tens of thousands, of times with minimal degradation. This is a huge win for an asset designed to last decades.
No Self-Degradation
The molten components are inherently more stable over long periods than many solid electrode materials, which can suffer from phase changes or material dissolution.
High Power and Energy Density (for their purpose)
While not as compact as a car battery, liquid metal batteries offer a good balance of power and energy for grid applications.
Fast Response Times
Because of the high kinetics at liquid-liquid interfaces, these batteries can respond very quickly to grid demands, shifting from full charge to full discharge in a matter of seconds to minutes.
This rapid response is vital for grid stabilization and ancillary services.
Scalability
The modular nature of liquid metal battery cells means they can be easily scaled up to very large capacities, suitable for megawatt and gigawatt-hour installations.
Using Abundant and Inexpensive Materials
This is arguably one of the most significant advantages, especially when considering the global demand for energy storage.
Avoiding Critical Materials
Many liquid metal battery designs use common elements like magnesium, antimony, lead, or calcium. These are far more abundant and less expensive than the lithium, cobalt, and nickel often found in high-performance portable batteries. This reduces supply chain risks and environmental impact.
Lower Cost Projections
Because of the material choices and straightforward manufacturing processes (relative to complex solid-state fabrication), cost projections for liquid metal batteries are often very competitive, aiming for prices well below $100/kWh, which is considered a benchmark for grid-scale viability.
Current Progress and Future Outlook
Liquid metal batteries are not just a theoretical concept; significant progress has been made, and several companies are actively developing and deploying them.
Promising Chemistries
Various combinations of molten metals and salts are being explored, each with its own advantages.
Magnesium-Antimony (Mg-Sb)
This chemistry, pioneered by researchers like Professor Donald Sadoway at MIT, is a frontrunner. Magnesium and antimony are abundant and relatively low cost. The operating temperature is around 450-500°C.
Lead-Antimony (Pb-Sb)
Another potential combination, using even more widely available materials. This could offer lower cost, though perhaps with slightly different performance characteristics.
Other Combinations
Researchers are continuously experimenting with other low-cost, abundant elements to optimize performance, lower operating temperatures, and further reduce costs.
Companies Leading the Charge
Several startups and established energy companies are investing in liquid metal battery development.

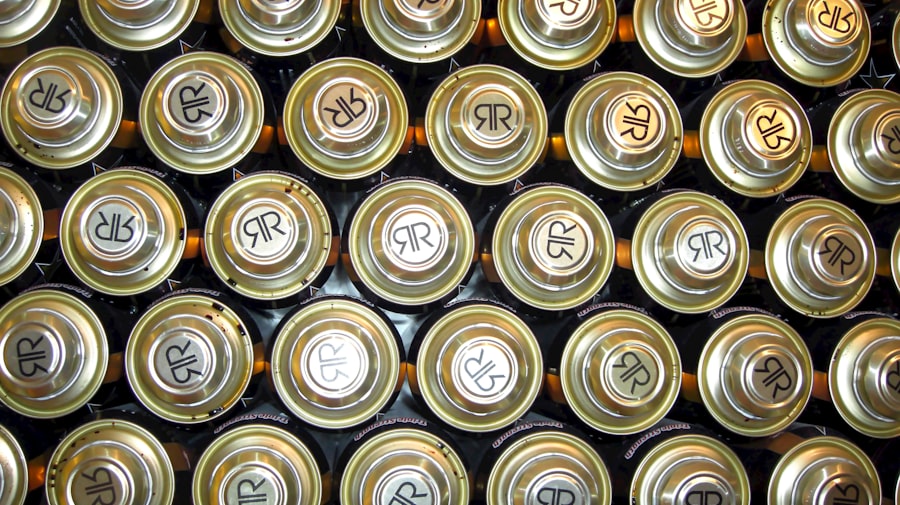

Ambri
Spun out of MIT, Ambri is perhaps the most well-known company in this space, focusing on large-scale deployment of their liquid metal battery technology. They’ve demonstrated multi-MWh systems and are actively working on commercialization.
Other Innovators
While Ambri is prominent, other research groups and companies worldwide are also exploring variations of liquid metal battery technology, indicating a growing interest in this field.
Challenges Still to Address
No technology is without its hurdles, and liquid metal batteries are no exception.
High Operating Temperatures
While advantageous for kinetics, maintaining high temperatures requires insulation and can lead to energy losses if not properly managed, especially during standby. The initial heat-up also requires energy.
Corrosion and Materials Science
Operating with molten salts and metals at high temperatures presents material science challenges. Finding container materials that are resistant to corrosion and don’t degrade over time is critical for long-term reliability.
Commercial Scale-Up
Moving from laboratory prototypes to commercially viable, large-scale manufacturing always presents challenges, including cost reduction, quality control, and supply chain development for specialized components.
Liquid metal batteries are gaining attention for their potential to transform grid-scale renewable energy storage, and a related article explores the latest advancements in wearable technology, specifically smartwatches. These devices are increasingly capable of displaying images, enhancing user experience and connectivity. For more insights on this topic, you can read about which smartwatches allow you to view pictures on them by following this link. As both liquid metal batteries and smartwatches evolve, they highlight the innovative strides being made in technology and energy solutions.
Impact on Renewable Energy Integration
| Aspect | Metrics |
|---|---|
| Energy Density | 1000 Wh/L |
| Round-Trip Efficiency | 70-80% |
| Operating Temperature | 500-700°C |
| Life Cycle | 20+ years |
| Cost | Competitive with other storage technologies |
The potential impact of liquid metal batteries on how we integrate renewable energy into the grid is profound.
Enabling Higher Renewable Penetration
With effective and affordable grid storage, we can push the percentage of renewable energy on the grid much higher, reducing our reliance on fossil fuels. Imagine a future where solar and wind can power homes 24/7, even when the sun isn’t shining or the wind isn’t blowing.
Deferring Grid Upgrades
By providing localized storage, liquid metal batteries can help manage peak demand and reduce congestion on transmission lines, potentially delaying the need for expensive grid infrastructure upgrades.
Creating a More Resilient Grid
Distributed energy storage can enhance grid resilience, making it less susceptible to large-scale outages caused by severe weather or other disruptions.
If one part of the grid goes down, localized storage can help maintain power in affected areas.
Liquid metal batteries are carving out a significant niche in the energy storage landscape. Their robust design, reliance on inexpensive materials, and excellent performance characteristics make them a very strong contender for addressing the critical need for grid-scale storage. As development continues and commercialization scales up, these molten powerhouses are set to play a pivotal role in accelerating our transition to a truly renewable and sustainable energy future.
FAQs
What are liquid metal batteries?
Liquid metal batteries are a type of energy storage technology that uses liquid metals as the electrodes and a molten salt as the electrolyte. This design allows for efficient and long-lasting energy storage, making it ideal for grid-scale renewable storage.
How do liquid metal batteries revolutionize grid-scale renewable storage?
Liquid metal batteries revolutionize grid-scale renewable storage by providing a cost-effective and efficient way to store energy from renewable sources such as wind and solar. This helps to address the intermittency of renewable energy and enables a more reliable and stable grid.
What are the advantages of liquid metal batteries over other energy storage technologies?
Liquid metal batteries offer several advantages over other energy storage technologies, including high energy density, long cycle life, rapid response times, and the ability to operate at high temperatures. These features make them well-suited for grid-scale renewable storage.
How are liquid metal batteries being used in grid-scale renewable storage?
Liquid metal batteries are being used in grid-scale renewable storage by storing excess energy generated from renewable sources during periods of low demand and releasing it during peak demand. This helps to balance the grid and reduce the need for fossil fuel-based power plants.
What is the potential impact of liquid metal batteries on the renewable energy industry?
The potential impact of liquid metal batteries on the renewable energy industry is significant, as they can help to accelerate the transition to a more sustainable and reliable energy system. By enabling greater integration of renewable energy sources into the grid, liquid metal batteries can play a key role in reducing greenhouse gas emissions and combating climate change.
