Direct Liquid Cooling vs. Immersion Cooling: Upgrading Data Center Thermal Efficiency in 2025

When you’re looking to boost your data center’s thermal efficiency in 2025, the big questions often boil down to two main contenders: Direct Liquid Cooling (DLC) and Immersion Cooling. Both offer significant improvements over traditional air cooling, but they work differently and suit different needs. Let’s break down what you need to know to make the right choice for your upgrade.

At its core, the goal is to move heat away from the IT equipment more effectively. Air cooling, while familiar, has limitations as chips get hotter and racks become denser. Both DLC and Immersion Cooling tackle this by using liquids, which are far better at absorbing and transferring heat than air.

Direct Liquid Cooling (DLC)

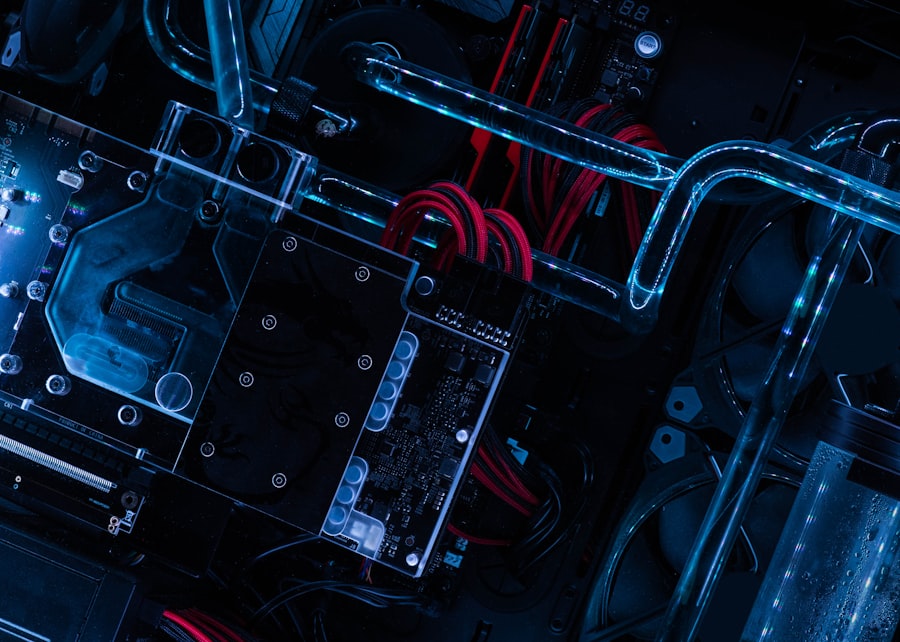

Think of DLC as a highly targeted approach. It involves circulating a coolant – usually a dielectric fluid – directly to the hottest components, like CPUs and GPUs. This is typically done through a closed loop system.

The Plumbing of DLC

• Cold Plates: These are metal blocks that attach directly to heat-generating components. A specialized liquid flows through channels within the cold plate, absorbing the heat.
• Pumps and Tubing: These move the heated liquid from the cold plates to a heat exchanger.
• Heat Exchangers: Here, the heat from the liquid is transferred to another medium, often a secondary liquid loop that then goes to an external cooling source like a dry cooler or a cooling tower.
• Reservoirs and Manifolds: These manage the coolant flow and ensure the system is properly filled and pressurized.

The key here is that the liquid is directly in contact with the heat source, allowing for very efficient heat removal right at the point of generation.

Immersion Cooling

Immersion cooling takes a broader approach, submerging the entire IT hardware – servers, switches, everything – into a non-conductive liquid. This is like giving your servers a bath in coolant.

The Two Flavors of Immersion

• Single-Phase Immersion: In this setup, the dielectric fluid remains in its liquid state. It’s circulated over the components, absorbing heat and then passing through a heat exchanger to release that heat. This is generally simpler to implement and maintain.
• Two-Phase Immersion: This is where things get a bit more interesting. The dielectric fluid has a low boiling point. As it absorbs heat from the components, it boils and turns into vapor. This vapor rises to the top of the tank, where it condenses back into a liquid on a cooling coil, and then drips back down to continue the cycle. This phase change is incredibly efficient at moving heat.

The beauty of immersion cooling is that it cools all components simultaneously, regardless of their heat output, and it can handle extremely high-density racks.

In the ongoing discussion about enhancing data center thermal efficiency, the article on the best laptops for coding and programming provides valuable insights into the technological advancements that can complement cooling solutions like Direct Liquid Cooling and Immersion Cooling. As data centers evolve in 2025, understanding the hardware that supports efficient coding and programming can play a crucial role in optimizing overall performance and energy consumption.

Key Takeaways

• Clear communication is essential for effective teamwork
• Active listening is crucial for understanding team members’ perspectives
• Conflict resolution skills are necessary for managing disagreements
• Trust and respect are the foundation of a successful team
• Collaboration and cooperation are key for achieving common goals

Why Upgrade in 2025? The Driving Forces

The need to upgrade thermal management isn’t just about keeping things cool; it’s about enabling performance, reducing costs, and meeting sustainability goals.

The Rise of High-Performance Computing (HPC) and AI

Modern CPUs and GPUs are pushing the boundaries of power consumption and heat generation.

Traditional air cooling simply can’t keep up with the thermal demands of these high-density, high-performance components.

AI workloads, in particular, are driving the need for more powerful processors that generate significant heat.

• More Powerful Chips: Processors for AI training and inference are designed for maximum performance, which often means higher power draw and thus higher heat output.
• Denser Racks: To maximize efficiency, data centers are increasingly packing more compute power into smaller footprints, leading to higher heat densities within server racks.
• Unlocking Potential: Efficient cooling is no longer a luxury; it’s a requirement for running these advanced workloads effectively and avoiding performance throttling.

Energy Consumption and Operational Costs

Cooling is a major contributor to a data center’s overall energy consumption. Inefficient cooling means higher electricity bills and a larger carbon footprint.

• PUE Reduction: Both DLC and Immersion Cooling can significantly lower a data center’s Power Usage Effectiveness (PUE), which is a metric for energy efficiency. A lower PUE means more of the facility’s energy goes to powering IT equipment rather than cooling it.
• Reduced HVAC Footprint: By taking over the heavy lifting of heat removal, these liquid cooling methods can reduce or even eliminate the need for large, energy-intensive CRAC (Computer Room Air Conditioner) units.
• Long-Term Savings: While the initial investment can be higher, the long-term savings on energy costs can be substantial.

Sustainability and Environmental Impact

As organizations focus more on their environmental, social, and governance (ESG) targets, efficient cooling becomes a critical component.

• Reduced Carbon Footprint: Lower energy consumption directly translates to a smaller carbon footprint.
• Water Conservation: Many liquid cooling solutions, especially those paired with modern heat rejection systems, can reduce water usage compared to traditional evaporative cooling towers.
• Extended Hardware Lifespan: By maintaining optimal operating temperatures, liquid cooling can contribute to the longevity of IT equipment.

Direct Liquid Cooling (DLC) Deep Dive

DLC offers a way to bring liquid cooling into existing infrastructure with less radical change than full immersion. It’s often seen as an evolutionary step.

The Mechanics of DLC Implementation

DLC systems involve integrating liquid cooling components directly onto or within the server chassis.

Components and Integration

• Chassis-Level Solutions: Servers are equipped with integrated cold plates and plumbing. This means the cooling is built into the server itself.
• Rack-Level Solutions: Sometimes, a whole rack can be plumbed to deliver coolant to multiple servers simultaneously.
• Distribution Units (RDHs): These are critical components that manage the flow of coolant from the facility’s main cooling loop to the individual servers in the rack.

  They handle pressure regulation and distribution.

• Heat Rejection: Typically, the warm liquid from the servers is returned to a Rear Door Heat Exchanger (RDHX) on the back of the rack or to a larger facility-level heat exchanger.

The key advantage is that you can often start with a few racks or even individual servers, making it a more phased approach.

When DLC Shines

DLC is particularly well-suited for scenarios where you need targeted cooling for high-heat components without a complete overhaul of your data center.

• Targeted Hotspots: Ideal for racks with a mix of high-density and standard servers, where only certain components require the advanced cooling.
• Phased Adoption: Allows data centers to gradually introduce liquid cooling, managing the investment and operational changes over time.
• Leveraging Existing Infrastructure: Can often be integrated into existing raised-floor data centers with modifications, rather than requiring a completely new build.
• Specific Workloads: Excellent for HPC clusters, AI/ML training servers, and high-end GPUs that demand direct, efficient cooling.

Potential Challenges and Considerations for DLC

While beneficial, DLC isn’t without its hurdles. Careful planning is essential.

• Fluid Management: Maintaining the correct coolant type, purity, and pressure is crucial. Leaks, though rare with modern systems, can be a concern.
• Maintenance Complexity: Servicing components within a liquid-cooled server can be more involved than with air-cooled systems.
• Server Compatibility: Not all servers are designed for DLC.

  Retrofitting can be difficult or impossible for older hardware.

• Upfront Investment: While potentially less than full immersion, the initial cost for specialized servers and infrastructure can still be significant.

Immersion Cooling Deep Dive

Immersion cooling is a more radical departure from air cooling and offers potentially higher levels of efficiency and density.

The Mechanics of Immersion Cooling Implementation

This involves tanks filled with dielectric fluid and the IT hardware submerged within.

Tank Design and Fluid Flow

• Submergence: Servers are placed directly into tanks filled with a non-conductive dielectric fluid. The fluid circulates naturally (convection) or is pumped.
• Material Compatibility: The tanks and internal components must be made of materials that are resistant to the dielectric fluid.
• Heat Exchange: In single-phase systems, heat is transferred from the fluid to a heat exchanger. In two-phase systems, the phase change itself is the primary mechanism for heat transfer.
• Infrastructure: This often requires dedicated rooms or modular solutions designed to house the immersion tanks.

The beauty of immersion is that it eliminates the need for fans within the servers, as the liquid does all the cooling.

When Immersion Cooling Shines

Immersion cooling is often the choice for data centers aiming for maximum density and the ultimate in thermal efficiency.

• Extreme Density: Ideal for hosting the densest compute environments, where air cooling simply cannot manage the heat load.
• Silent Operation: The absence of server fans leads to a significant reduction in noise.
• Simplified Server Design: Servers can be stripped down to their core components, as they don’t need integrated cooling solutions. This can lead to more robust and potentially cheaper servers in the long run.
• Energy Efficiency Champions: Offers the potential for the lowest PUE values due to its inherent efficiency and ability to eliminate fan energy.
• Future-Proofing: Designed to handle the most demanding future hardware, making it a strong choice for long-term investment.

Potential Challenges and Considerations for Immersion Cooling

The radical nature of immersion cooling also brings unique challenges.

• Retrofitting Existing Facilities: Completely submerging hardware often requires significant modifications or dedicated new builds for existing data centers.
• Maintenance and Servicing: Removing and working on submerged hardware can be a more complex process, requiring specialized procedures and trained staff.
• Fluid Management and Cost: The dielectric fluids themselves can be expensive, and managing their purity and any potential evaporation (in two-phase) is critical.
• Hardware Compatibility and Vendor Lock-in: Not all hardware is designed for immersion. You might need to work with specific vendors offering immersion-ready or optimized hardware.
• Risk of Fluid Contamination: While dielectric fluids are designed to be non-conductive, any contamination could lead to electrical issues.

In exploring the advancements in data center thermal management, the discussion around Direct Liquid Cooling versus Immersion Cooling is becoming increasingly relevant as we approach 2025. Both methods promise significant improvements in energy efficiency and cooling performance, making them vital considerations for future data center designs. For a broader perspective on innovative technologies that enhance efficiency, you might find it interesting to read about the new capabilities of the Samsung Galaxy Chromebook 4, which showcases how cutting-edge technology can transform user experiences. You can check out the article here.

Comparing DLC and Immersion: Which is Right for You in 2025?

The choice between DLC and Immersion Cooling isn’t a one-size-fits-all decision. It depends heavily on your specific needs, existing infrastructure, and future goals.

Density and Scalability

• DLC: Offers good density improvements and scales well rack by rack. It’s a more incremental upgrade. You can start with a few racks and expand as needed. This makes it very appealing for data centers that aren’t looking for an immediate, total transformation. The scalability is more about adding more cooled racks rather than a fundamental shift in facility design.
• Immersion: Designed for extreme density. If your primary goal is to pack the absolute maximum amount of compute into a given space, immersion cooling is the undisputed leader. It’s less about incremental upgrades and more about a strategic shift in your data center’s physical layout and cooling strategy. Scaling is often about adding more tanks or larger tank systems.

Infrastructure and Retrofitting

• DLC: More adaptable to existing air-cooled data centers. While modifications will be needed (e.g., plumbing, heat rejection units), it often doesn’t require a complete gutting of the facility. This makes it a more accessible upgrade path for many established data centers. You can often integrate DLC into a traditional raised-floor environment.
• Immersion: Generally requires more significant infrastructure changes. This could mean dedicated rooms, specialized flooring, and unique power and fluid distribution systems. Retrofitting an existing facility for large-scale immersion can be a complex and costly undertaking. It’s often better suited for new builds or major expansions.

Cost Considerations

• DLC: The upfront cost can be lower than full immersion, especially if you can leverage some existing infrastructure. However, the cost per server or per rack can still be substantial, particularly for high-end, integrated solutions. The total cost of ownership will depend on your PUE savings and hardware longevity.
• Immersion: The initial investment for immersion cooling can be higher, especially for the tanks, fluids, and specialized facility modifications. However, the potential for extremely low PUE and simplified server hardware could lead to significant long-term operational cost savings. The return on investment calculation needs to be thorough.

Maintenance and Operational Complexity

• DLC: Maintenance involves managing liquid loops, pumps, and heat exchangers. It’s a step up in complexity from air cooling but often manageable with trained staff. Component replacement within servers might require disconnecting from the liquid loop.
• Immersion: Maintenance of the fluid itself is key – ensuring purity, topping off, and handling any potential leaks. Working on hardware requires specialized procedures for removal and re-installation from the tanks. The absence of server fans simplifies hardware maintenance in some ways, but the overall process can be less familiar.

Making the Decision: A Practical Approach

To figure out which cooling strategy is best for your data center in 2025, you need to ask the right questions and do some legwork.

Assessing Your Current and Future Needs

• What are your current thermal challenges? Are you seeing thermal throttling? Are your CRAC units running at full capacity?
• What are your projected compute needs? Are you anticipating a significant increase in AI/HPC workloads? What are the power draw specifications of your target hardware?
• What is your data center’s physical footprint and layout? Is it a new build, a renovation, or an existing facility with limitations?
• What are your budget constraints? Consider both upfront capital expenditure (CapEx) and ongoing operational expenditure (OpEx).

The Role of Pilot Projects

For both DLC and Immersion Cooling, a pilot project can be invaluable.

• Test the Waters: Deploying a small-scale pilot allows you to gain hands-on experience with the technology.
• Validate Performance: You can measure actual power savings, thermal performance, and ease of maintenance in your environment.
• Train Staff: Your IT and facilities teams can get accustomed to the new procedures and protocols.
• Identify Unforeseen Issues: A pilot helps uncover any compatibility issues or operational challenges before a large-scale rollout.

Consulting with Experts and Vendors

Don’t try to go it alone. The landscape of liquid cooling is evolving rapidly, and experts can provide critical insights.

• Understand the Options: Work with vendors who specialize in both DLC and Immersion Cooling to get a comprehensive understanding of their offerings.
• Seek ROI Analysis: Ask for detailed return on investment calculations based on your specific data center metrics and projected workloads.
• Discuss Integration: Ensure any proposed solution integrates smoothly with your existing IT and facility infrastructure.

By systematically evaluating your needs, considering the practicalities, and leveraging expert advice, you can confidently choose the liquid cooling solution that will optimize your data center’s thermal efficiency in 2025 and beyond.

FAQs

What is direct liquid cooling?

Direct liquid cooling involves circulating a dielectric fluid directly to the heat-generating components within a server, such as the CPU and GPU, to efficiently remove heat.

What is immersion cooling?

Immersion cooling submerges the entire IT hardware, including servers, storage, and networking equipment, in a non-conductive liquid to dissipate heat, offering a more comprehensive cooling solution.

What are the benefits of direct liquid cooling?

Direct liquid cooling offers higher thermal efficiency, reduced energy consumption, and the potential for higher density computing, making it an attractive option for data centers looking to optimize their cooling systems.

What are the advantages of immersion cooling?

Immersion cooling provides a more uniform cooling environment, reduces the need for air conditioning, and can extend the lifespan of IT hardware by minimizing thermal stress, making it a compelling choice for data centers seeking improved thermal management.

How do direct liquid cooling and immersion cooling contribute to data center thermal efficiency in 2025?

Both direct liquid cooling and immersion cooling offer advanced thermal management solutions that can significantly enhance data center efficiency by reducing energy consumption, improving cooling performance, and enabling higher density computing, aligning with the evolving needs of data centers in 2025.
