Gardening is a wonderful hobby, but let’s be honest – it can be a significant time commitment. That’s where a smart garden automation system, particularly one built around soil moisture sensors, comes in handy. The core idea is to let your plants tell you when they need water, rather than you guessing or sticking to a rigid schedule. This approach not only saves you time and effort but also leads to healthier plants and conserves water. No more overwatering or underwatering, just happy plants and a little more free time for you.
Before we dive into the “how,” let’s quickly touch upon the fundamental benefits. It’s more than just convenience; it’s about efficiency and plant health.
Beyond Set-and-Forget Timers
Traditional irrigation timers are a step up from manual watering, but they’re inherently unintelligent. They water whether it rained yesterday, whether the plant is bone dry, or whether it’s already soggy from an unexpected downpour. This leads to wasted water and, more importantly, can stress your plants. Roots that are constantly waterlogged are prone to rot, and plants that are consistently under-watered will struggle to thrive.
The Precision of Soil Moisture Sensing
This is where soil moisture sensors shine. They provide real-time data about the actual water content in the soil. Instead of operating on assumptions, your system can react to the plants’ actual needs. This precision is the cornerstone of a truly low-maintenance and effective smart garden. It’s like having an always-on plant whisperer telling you exactly what’s going on underground.
Water Conservation and Cost Savings
Overwatering isn’t just bad for your plants; it’s also a waste of a precious resource. A smart system ensures that water is only applied when and where it’s truly needed. This can lead to significant reductions in your water bill over time, especially for larger gardens or during hot, dry periods. It’s a win-win for your wallet and the environment.
In the realm of smart gardening, the integration of technology to create low-maintenance systems is becoming increasingly popular. A related article that explores innovative technology in everyday devices is available at Unlock a New World of Possibilities with Samsung Galaxy Z Fold4. This article highlights how advancements in mobile technology can enhance user experiences, paralleling the way smart garden automation systems utilize sensors to optimize plant care and reduce the need for constant attention.
Key Takeaways
- Clear communication is essential for effective teamwork
- Active listening is crucial for understanding team members’ perspectives
- Setting clear goals and expectations helps to keep the team focused
- Regular feedback and open communication can help address any issues early on
- Celebrating achievements and milestones can boost team morale and motivation
Key Components of Your Smart Garden System
Building a smart garden doesn’t require a degree in engineering, but understanding the main components will help you choose the right bits and pieces.
The Brain: Microcontroller or Single-Board Computer
This is the central control unit that processes data from sensors and triggers actions.
Arduino Boards
Arduino is an excellent starting point for beginners. They are relatively inexpensive, have a huge online community for support, and there are tons of tutorials available. For a garden automation project, an Arduino Uno or Nano is often sufficient. They are great for simple logic like “if sensor value is below X, turn on pump.”
Raspberry Pi
If you envision a more complex system with features like a web interface, logging data, or integrating with other smart home devices, a Raspberry Pi is a more powerful choice. It’s a full-fledged mini-computer running Linux, offering greater flexibility and processing power. It does have a steeper learning curve than Arduino, but the capabilities are much broader.
ESP32/ESP8266 Modules
These are fantastic options, especially if you want your system to be wirelessly connected (which you probably do for a smart garden). They combine a microcontroller with Wi-Fi capabilities, allowing your system to communicate with your home network, send alerts, or even be controlled remotely via a smartphone app. They bridge the gap between simple microcontrollers and full single-board computers in terms of complexity and capability.
The Senses: Soil Moisture Sensors
These are the stars of the show, providing the crucial data.
Resistive Sensors
These are very common and cheap. They work by measuring the electrical resistance between two probes in the soil. The more water, the less resistance. The downside? They can corrode over time due to electrolysis, leading to inaccurate readings and eventual failure. They’re good for short-term projects or if you’re okay with replacing them every year or so.
Capacitive Sensors
A much better choice for longevity. These sensors measure the change in capacitance caused by the presence of water in the soil. They don’t have exposed metal contacts in the soil, which significantly reduces corrosion. They are a bit more expensive than resistive sensors but are well worth the investment for a lasting system. Look for models that are specifically designed for long-term outdoor use.
Understanding Sensor Placement
Correct placement is crucial. You want the sensor to be at the depth where your plant’s roots are actively taking up water. For smaller plants, this might be a few inches deep; for larger plants or trees, it could be much deeper. You’ll likely need multiple sensors for different zones or plant types. Aim for consistency in placement within a zone.
The Muscles: Water Pumps and Valves
These are what actually deliver the water.
DC Water Pumps
For smaller systems, like a few potted plants or a small raised bed, a 12V DC mini submersible pump is often sufficient. They are inexpensive and easy to control with a relay module. Just ensure you match the pump’s voltage requirements with your power supply.
Solenoid Valves
For larger garden areas connected to your main irrigation line, you’ll use solenoid valves. These are electrically controlled valves that open and close to allow water flow. You’ll need to select valves appropriate for your water pressure and pipe size. They also require a relay module to control them with your microcontroller.
The Connectors: Relays
Relays act as an electrical switch, allowing your low-power microcontroller to control higher-power devices like pumps and valves.
Single vs. Multi-Channel Relays
You’ll choose these based on how many separate devices you need to control. If you have one pump, a single-channel relay is fine. If you have multiple irrigation zones with separate solenoid valves, you’ll need a multi-channel relay board (e.g., a 4-channel or 8-channel relay module).
Power Supply
Don’t forget this crucial component! Your microcontroller, sensors, and pumps/valves will all need power.
Wall Adapters
For indoor or protected outdoor setups, a standard wall adapter (e.g., 5V for Arduino/ESP32, 12V for some pumps) is simple and effective.

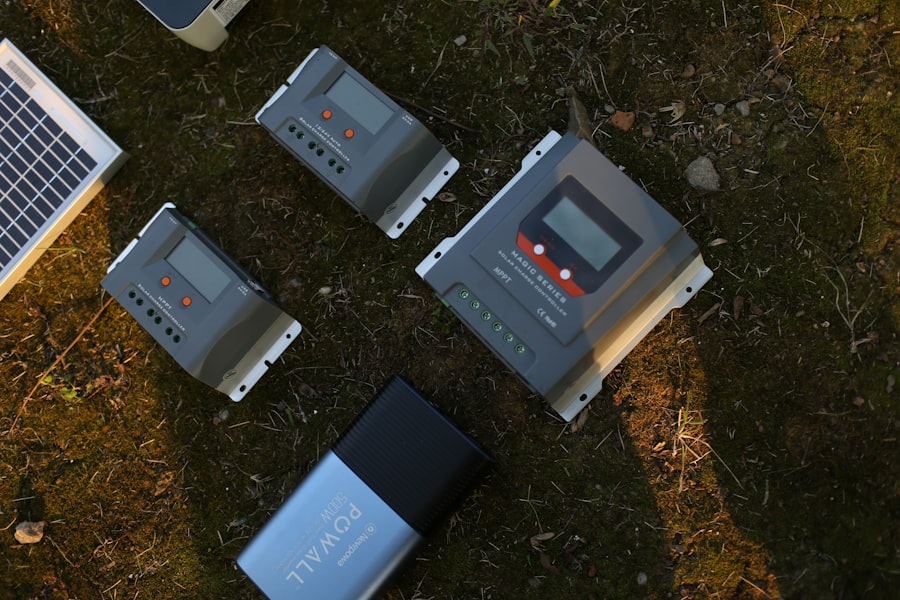

Solar Power (for remote setups)
If your garden is far from an outlet, or you want an eco-friendly solution, solar power is an option. This would involve a solar panel, a charge controller, and a battery (e.g., a 12V lead-acid or LiFePO4 battery). This adds complexity but offers true independence.
Designing Your System’s Logic and Software
This is where your system truly becomes “smart.” It’s about translating sensor data into meaningful actions.
Calibration is Key
Soil moisture sensors don’t give universal readings. “Wet” for one sensor in one soil type might be different for another.
Wet and Dry Thresholds
You’ll need to calibrate each sensor in its specific soil environment. The simplest way is to read the sensor value when the soil is completely dry and then again when it’s fully saturated.
These two values will give you your operating range. You can then define a “too dry” threshold that triggers watering. For example, if dry is 900 and wet is 300 (analog readings), you might set your “water now” threshold at 600.
Averaging Readings
Instead of relying on a single instantaneous reading, it’s often better to take several readings over a short period and average them.
This helps smooth out any momentary fluctuations and provides a more stable data point.
Basic Control Flow
The core logic is straightforward:
“`
Read soil moisture sensor value.
If the value is below the “dry threshold”:
Turn on the water pump/open solenoid valve.
Water for a predetermined duration (e.g., 5 minutes).
Turn off the water pump/close solenoid valve.
Wait for a “debounce” period before checking again (to prevent rapid on/off cycling).
Else (if the value is above the threshold):
Do nothing.
Wait for a set interval (e.g., 30 minutes) before checking again.
“`
Advanced Considerations
As you get more comfortable, you can add more sophistication.
Multiple Zones
If you have different plant types or areas with varying sun exposure, you’ll want multiple irrigation zones, each with its own sensor and valve.
Your code would then manage each zone independently.
Time Windows
You might want to restrict watering to specific times of the day (e.g., early morning or late evening) to minimize evaporation and fungal growth. Your code can incorporate time checks before initiating watering.
Rain Delays
A simple rain sensor or even fetching local weather data from an API can tell your system to skip watering if rain is expected or has recently occurred. This is a significant water saver.
Data Logging and Monitoring
A Raspberry Pi or ESP32 can send sensor data to a cloud service (like Adafruit IO, ThingSpeak, or even a local database) for logging.
This allows you to visualize trends, monitor plant health over time, and fine-tune your watering thresholds.
Putting It All Together: A Practical Setup Guide
Let’s walk through a simplified example of getting your system running.
Choosing Your Microcontroller and Sensors
For a first project, an ESP32 or ESP8266 combined with capacitive soil moisture sensors is a great, balanced choice. The integrated Wi-Fi makes it easy to monitor and expand.
Wiring It Up
This is where diagrams are incredibly helpful, but here’s the basic rundown:
Power Connections
Connect your power supply to your microcontroller. Most ESP modules have a 5V input, and they have onboard voltage regulators to power themselves and low-power sensors.
Sensor to Microcontroller
Connect the analog output of your capacitive soil moisture sensor to an analog input pin on your ESP (e.g., ADC0, ADC1). Power the sensor from your ESP’s 3.3V or 5V output and ground.
Relay to Microcontroller and Pump/Valve
Connect the control pin of your relay module to a digital output pin on your ESP. Connect the relay’s VCC and GND pins to your ESP’s power and ground. Then, the pump/valve’s power wire connects to the common and normally open (NO) terminals of the relay, and the pump/valve’s other wire goes to your power supply. This allows the relay to switch the pump/valve on and off. Crucially, make sure the power source for the pump/valve is separate and correctly sized.
Basic Programming (Arduino IDE Example)
You’ll use the Arduino IDE, even for ESP modules (with the ESP board definitions installed).
“`cpp
#include
// … other necessary libraries (e.g., for logging)
const int MOISTURE_SENSOR_PIN = A0; // Analog pin for sensor
const int RELAY_PIN = D1; // Digital pin for relay control
const int DRY_THRESHOLD = 600; // Adjust based on your sensor calibration
const int WATER_DURATION_SECONDS = 300; // Water for 5 minutes
const long CHECK_INTERVAL_MS = 30 60 1000; // Check every 30 minutes
const long DEBOUNCE_INTERVAL_MS = 5 60 1000; // Wait 5 mins after watering
unsigned long lastCheckTime = 0;
void setup() {
Serial.begin(115200);
pinMode(RELAY_PIN, OUTPUT);
digitalWrite(RELAY_PIN, HIGH); // Assuming HIGH is OFF for your relay (active LOW)
// Configure Wi-Fi if you want remote monitoring
// WiFi.begin(“YourSSID”, “YourPassword”);
// while (WiFi.status() != WL_CONNECTED) {
// delay(500);
// Serial.print(“.”);
// }
// Serial.println(“\nWiFi connected”);
}
void loop() {
unsigned long currentTime = millis();
if (currentTime – lastCheckTime >= CHECK_INTERVAL_MS) {
int moistureValue = analogRead(MOISTURE_SENSOR_PIN);
Serial.print(“Soil Moisture: “);
Serial.println(moistureValue);
if (moistureValue > DRY_THRESHOLD) { // Higher value means drier for many sensors
Serial.println(“Soil is dry, initiating watering.
“);
digitalWrite(RELAY_PIN, LOW); // Turn on pump/valve (assuming active LOW relay)
delay(WATER_DURATION_SECONDS * 1000); // Water for specified duration
digitalWrite(RELAY_PIN, HIGH); // Turn off pump/valve
Serial.
println(“Watering complete.”);
lastCheckTime = currentTime; // Reset timer
delay(DEBOUNCE_INTERVAL_MS); // Wait a bit before next check to let water soak
} else {
Serial.println(“Soil moisture is adequate.”);
lastCheckTime = currentTime; // Reset timer even if not watering
}
}
delay(100); // Small delay to prevent busy looping
}
“`
Important: This is a simplified example. You’d need to adapt pin numbers, thresholds, and relay logic (some relays are active HIGH, some active LOW) to your specific components.
In exploring innovative solutions for sustainable gardening, the article on creating a low-maintenance smart garden automation system with soil moisture sensors offers valuable insights. This approach not only enhances plant health but also conserves water, making it an ideal choice for eco-conscious gardeners. For those interested in the intersection of technology and home gardening, you might find further inspiration in this related piece on technology news and reviews available at this link.
Maintenance and Troubleshooting Tips
“`html
| Metrics | Value |
|---|---|
| Number of Soil Moisture Sensors | 4 |
| Watering Frequency | Every 2 days |
| Watering Duration | 10 minutes |
| Power Source | Solar panels |
| Control System | Microcontroller with Wi-Fi connectivity |
“`
Even low-maintenance systems need a little attention now and then.
Regular Sensor Checks
While capacitive sensors are more robust, it’s a good idea to periodically check their readings against a manual soil test (just stick your finger in the dirt). This helps ensure they haven’t drifted or been physically damaged.
Power Supply Integrity
Ensure all power connections are secure and protected from the elements. Rodents can also chew through wires, so keep an eye out for any damage.
Pump and Valve Inspections
Check your pumps and valves for blockages or leaks. Over time, debris can accumulate in pumps, reducing their efficiency. Solenoid valves can also get stuck.
Software Updates and Refinements
As you gain experience, you might want to tweak your watering logic or add new features. Keeping your code updated and occasionally reviewing your system’s performance data can lead to even better results.
Weather Protection
Unless your components are explicitly rated for outdoor use, ensure they are housed in a weatherproof enclosure. This protects them from rain, direct sunlight, and extreme temperatures, significantly extending their lifespan.
In the quest for creating a sustainable and efficient gardening solution, the concept of a low-maintenance smart garden automation system utilizing soil moisture sensors has gained significant attention. This innovative approach not only simplifies the gardening process but also ensures optimal plant health by delivering precise water levels. For those interested in enhancing their creative potential while exploring technology, a related article discusses the capabilities of the Samsung Galaxy Book Flex2 Alpha, which can be a valuable tool for designing such systems. You can read more about it here.
Expanding Your Smart Garden
Once you have the basics down, the sky’s the limit for adding more smart features.
Advanced Environmental Sensors
Beyond soil moisture, consider adding:
Temperature and Humidity Sensors
These can help you understand microclimates in your garden and adjust watering or ventilation accordingly. For instance, if humidity is very high, you might reduce watering even if the soil is somewhat dry to prevent fungal issues.
Light Sensors
Knowing how much light your plants are getting can inform decisions about plant placement or even automatically trigger grow lights for indoor setups.
pH Sensors
For specialized plants, monitoring soil pH can be crucial for nutrient uptake. These are more complex and require more frequent calibration but can be very beneficial.
Smart Home Integration
Many microcontrollers, especially ESP32/ESP8266 and Raspberry Pi, can integrate with popular smart home platforms like Home Assistant, Google Home, or Amazon Alexa.
Remote Monitoring and Control
Imagine checking your garden’s status from anywhere in the world or telling Alexa to “water the tomatoes” when you’re away. This level of integration adds immense convenience.
Automated Alerts
Receive notifications on your phone if a sensor detects an anomaly (e.g., soil is bone dry for too long, or a pump isn’t working).
Building a smart garden automation system with soil moisture sensors is a rewarding project. It empowers you to take control of your garden’s health, conserve water, and free up your time for other enjoyable activities. Start simple, learn as you go, and watch your garden thrive with a little help from technology.
FAQs
What is a smart garden automation system?
A smart garden automation system is a technology that allows for the automatic monitoring and control of various aspects of a garden, such as watering, lighting, and temperature, using sensors and connected devices.
What are soil moisture sensors and how do they work?
Soil moisture sensors are devices that measure the water content in the soil. They work by using electrical conductivity or capacitance to determine the moisture level in the soil, which can then be used to trigger automated watering systems.
How does a low-maintenance smart garden automation system benefit gardeners?
A low-maintenance smart garden automation system benefits gardeners by reducing the need for manual monitoring and watering of plants. It can help conserve water, prevent overwatering or underwatering, and ensure that plants receive the right amount of moisture for optimal growth.
What are the key components of a low-maintenance smart garden automation system?
Key components of a low-maintenance smart garden automation system include soil moisture sensors, a microcontroller or programmable logic controller (PLC), actuators for controlling water valves or pumps, and a user interface for monitoring and adjusting settings.
What are some considerations for designing a low-maintenance smart garden automation system?
When designing a low-maintenance smart garden automation system, it’s important to consider the specific needs of the plants in the garden, the environmental conditions, the reliability of the sensors and actuators, power supply options, and the user interface for easy management and control.
