Micro-Drones for Indoor Inspection in Confined Spaces

The application of micro-drones for indoor inspection within confined spaces represents a significant development in industrial maintenance and hazard assessment. This article explores the technical characteristics, operational challenges, safety implications, and potential future developments of these specialized unmanned aerial vehicles (UAVs). We will examine how these tools, often no larger than an individual’s palm, are reshaping methodologies for examining inaccessible or dangerous environments.

Micro-drones engineered for confined space inspection possess distinct technical attributes that differentiate them from their larger counterparts. These attributes are critical for their maneuverability, endurance, and data acquisition capabilities in challenging environments.

Size and Weight Constraints

The defining characteristic of these drones is their compact size. Typically, they have a diagonal motor-to-motor distance of less than 150 millimeters and weigh under 250 grams. This small footprint is not arbitrary; it is a direct response to the operational requirements of confined spaces, which often include narrow passages, small apertures, and cluttered interiors.

• Miniaturization of Components: Achieving these dimensions necessitates extensive miniaturization of all onboard systems. This includes flight controllers, motors, batteries, and sensor payloads. Advances in micro-electro-mechanical systems (MEMS) are fundamental to this component reduction.
• Impact on Aerodynamics: The small size can influence aerodynamic stability. Smaller airframes are more susceptible to air currents, even those generated by their own propellers. Flight control algorithms must compensate for these inherent instabilities to maintain precise positioning.

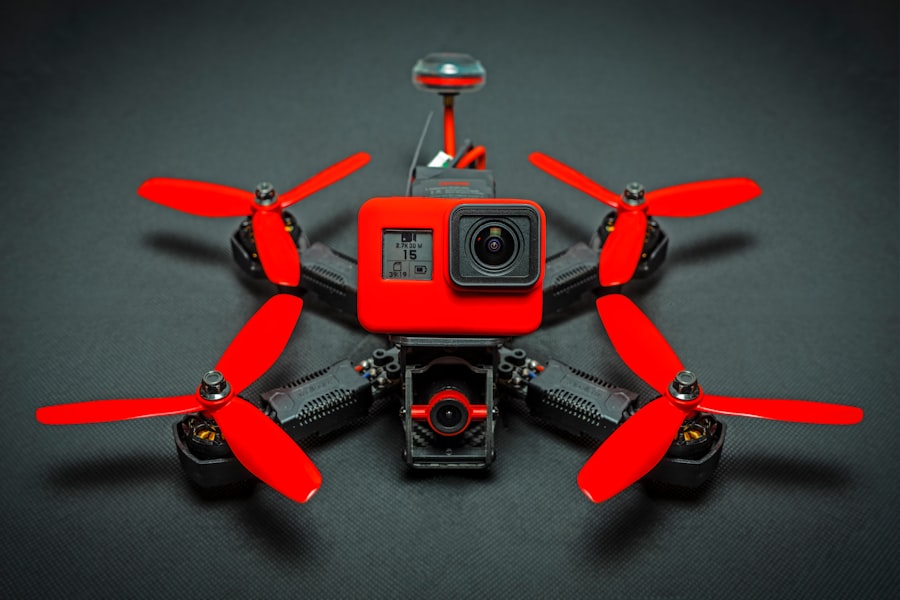

Propulsion Systems and Agility

Efficient and robust propulsion is paramount for indoor flight. Brushless DC motors are the preferred choice for most micro-drones due to their power-to-weight ratio and durability.

• Ducted Propellers: Many designs incorporate ducted propellers. This configuration offers several advantages for indoor inspection. Ducts provide a degree of protection against impacts with obstacles, reducing the risk of propeller damage and potential entanglement. They also can increase thrust efficiency by directing airflow more effectively and may reduce noise levels. The ducted design acts as a physical barrier, preventing propellers from striking surfaces or personnel, a critical safety feature in enclosed areas.
• Thrust-to-Weight Ratio: A high thrust-to-weight ratio is crucial for navigating dynamic, three-dimensional environments. It allows for rapid ascent, descent, and lateral movement, essential for avoiding obstacles and maintaining position in turbulent air.

Onboard Sensors and Payloads

The primary purpose of these drones is data acquisition. Therefore, their sensor suites are tailored for inspection tasks.

• Visual Cameras: High-resolution cameras are standard equipment. They capture still images and video footage, providing visual documentation of structural integrity, corrosion, cracks, or other anomalies. Some models incorporate zoom capabilities, allowing for closer examination of specific areas without requiring the drone to physically approach too closely.
• Lighting Systems: Confined spaces are often dimly lit or entirely dark. Integrated LED lighting systems are therefore essential. These lights illuminate the inspection area, ensuring clear visibility for the camera. Adjustable intensity and beam focus are beneficial features.
• Thermal Imaging: Infrared (IR) cameras, or thermal imagers, detect temperature differences. This can be invaluable for identifying hotspots indicative of electrical faults, overheating machinery, or insulation deficiencies. It provides a layer of data beyond what is visible to the naked eye.
• Lidar/Depth Sensors: Light Detection and Ranging (Lidar) or other depth sensors are becoming increasingly prevalent. These sensors generate 3D point clouds of the environment, enabling the drone to create a map of the space, detect obstacles, and navigate autonomously or semi-autonomously. This data can also be used for advanced dimensional analysis of structures.
• Other Specialized Sensors: Depending on the specific application, other sensors might be integrated, such as gas detectors for hazardous environments, ultrasonic sensors for thickness measurements, or even radiation detectors in specific industrial contexts.

Micro-drones have emerged as a revolutionary tool for indoor inspection in confined spaces, providing enhanced safety and efficiency in various industries. For those interested in exploring the intersection of technology and media, a related article on the best software for video editing in 2023 can offer insights into how high-quality visuals can complement drone footage. You can read more about it here: Best Software for Video Editing in 2023. This resource can be particularly useful for professionals looking to enhance their inspection reports with compelling video content.

Operational Challenges in Confined Spaces

Operating micro-drones within confined spaces presents a unique set of challenges that dictate design choices and operational procedures. These challenges distinguish indoor-confined space operations from typical outdoor drone flights.

GPS-Denied Environments

A fundamental challenge is the absence of Global Positioning System (GPS) signals. Indoor environments, particularly those with thick walls or metallic structures, block satellite signals, rendering GPS ineffective for navigation and localization.

• Simultaneous Localization and Mapping (SLAM): SLAM algorithms are critical for overcoming GPS limitations. These complex algorithms allow the drone to build a map of its unknown environment while simultaneously tracking its own position within that map. This is often achieved by fusing data from various onboard sensors like cameras (visual SLAM), Lidar, or ultrasonic sensors.
• Visual Odometry: This technique estimates the drone’s position and orientation by analyzing the changes in sequential camera images. By tracking features across frames, the drone can infer its movement. This is a common component of visual SLAM systems.
• Inertial Measurement Units (IMUs): IMUs, comprising accelerometers and gyroscopes, provide short-term motion and orientation data. This data is often fused with visual or Lidar data to correct for drift and provide a more robust position estimate.

RF Signal Attenuation and Obstruction

Radio frequency (RF) signals, used for command and control and data transmission, are significantly attenuated and obstructed by walls, pipes, and other metallic structures common in confined spaces. This can lead to loss of communication and control.

• Robust Communication Protocols: Drones utilize robust communication protocols that can handle intermittent signal loss and re-establish connections quickly. Frequency hopping and spread spectrum techniques can enhance signal reliability.
• Mesh Networking (Future Potential): For very large and complex confined spaces, future solutions might involve mesh networking, where multiple drones or stationary nodes relay signals to maintain a robust communication link to the operator.
• Signal Penetration: Different radio frequencies have varying penetration capabilities. Manufacturers select frequencies that offer a reasonable balance between bandwidth and penetration through typical building materials.

Collision Avoidance and Navigation

The crowded nature of confined spaces, often filled with pipes, machinery, and uneven surfaces, makes collision avoidance an ongoing concern.

• Proximity Sensors: Ultrasonic sensors or infrared distance sensors provide localized obstacle detection, enabling the drone to automatically slow down or adjust its trajectory if it approaches an obstacle too closely.
• 3D Mapping and Path Planning: Lidar data can be used to generate a 3D map of the environment. This map allows for pre-programmed or real-time path planning, enabling the drone to navigate around known obstacles. This is particularly useful for repeat inspections where a navigable path can be established.
• Operator Skill and Training: Despite technological advancements, the skill of the human operator remains paramount. Manual piloting in confined spaces requires extensive training and spatial awareness.

Dust, Debris, and Environmental Factors

Confined spaces are frequently characterized by challenging environmental conditions, including dust, high humidity, temperature extremes, and potentially corrosive atmospheres.

• Environmental Sealing: Drones are often IP-rated (Ingress Protection) to resist dust and water ingress, protecting sensitive electronics. For particularly harsh environments, specialized coatings or fully sealed designs may be employed.
• Temperature Tolerance: Components must be selected that can operate reliably across a wide range of temperatures, from freezing to significantly elevated temperatures found in industrial processes.
• Propeller Fouling: Dust and loose debris can accumulate on propellers, leading to imbalance and reduced efficiency. Regular maintenance and, in some designs, self-cleaning mechanisms are important.

Advantages of Using Micro-Drones

The deployment of micro-drones for indoor inspection offers substantial benefits over traditional methods, primarily centered around safety, efficiency, and data quality.

Enhanced Safety for Personnel

This is arguably the most significant advantage. Confined spaces and hazardous environments pose considerable risks to human inspectors, including falls, exposure to toxic gases, oxygen deprivation, and entrapment.

• Elimination of Human Entry: Drones can access areas deemed too dangerous for humans, such as tanks filled with residual chemicals, high-temperature boilers, or structures with compromised integrity. This fundamentally alters the risk profile of inspections.
• Reduced Need for Scaffolding and Rope Access: Traditional inspection often requires the construction of elaborate scaffolding or the use of rope access techniques, which are time-consuming, expensive, and still carry inherent risks. Drones can bypass these requirements, acting as aerial access platforms.
• Pre-Inspection Assessment: Drones can perform an initial “reconnaissance” of a confined space, providing operators with vital information about potential hazards (e.g., gas leaks, structural damage) before any human entry is considered, if at all.

Cost and Time Efficiency

Beyond safety, the operational efficiencies offered by micro-drones translate into significant cost and time savings.

• Faster Inspection Times: Drones can cover large areas and reach inaccessible points far more quickly than human inspectors. What might take hours or days for a human team can often be completed in minutes or a few hours with a drone. This reduces facility downtime, particularly critical in industries where outages are costly.
• Reduced Logistics: The logistical burden of deploying a human inspection team – including safety equipment, permits, confined space entry procedures, and standby rescue teams – is substantially reduced or eliminated with drone deployment.
• Minimizing Production Downtime: In industrial settings, every minute of facility shutdown equates to lost production. By accelerating inspection processes, drones help bring operations back online faster, directly impacting profitability.

Improved Data Quality and Documentation

Micro-drones equipped with advanced sensors provide superior data collection and documentation capabilities compared to traditional visual inspections.

• High-Resolution Visuals: Drones capture high-definition images and videos, offering a detailed visual record of the asset’s condition. This data can be archived and used for historical comparison, tracking degradation over time.
• Multi-Sensor Data Fusion: The ability to simultaneously collect data from visual, thermal, and 3D mapping sensors provides a comprehensive understanding of the asset. For example, a visual image might show a corroded pipe, while a thermal image of the same pipe reveals a temperature anomaly, indicating a more severe issue.
• Repeatability and Objectivity: Drone inspections offer a higher degree of repeatability. The flight path can be programmed and executed precisely on subsequent inspections, ensuring consistent data collection from the exact same viewpoints. This introduces objectivity, reducing reliance on subjective human interpretation.
• 3D Modeling and Digital Twins: Lidar-equipped drones can generate precise 3D models of confined spaces. This data can be integrated into Building Information Models (BIM) or used to create “digital twins” of assets, providing a virtual representation for ongoing monitoring, maintenance planning, and simulation.

Applications Across Industries

Micro-drones are finding diverse applications across a spectrum of industries, revolutionizing how assets are inspected and maintained. Their versatility allows them to serve as aerial scouts in environments ranging from the benign to the highly hazardous.

Industrial Facilities

Factories, power plants, chemical processing facilities, and manufacturing plants present numerous environments ripe for drone inspection.

• Boilers and Furnaces: Inspecting the interior of large boilers and furnaces for refractory damage, tube integrity, or slag buildup is a hazardous task. Drones can navigate these hot, dark, and often structurally complex environments.
• Tanks and Vessels: Storage tanks for liquids, gases, or powders require regular inspection for corrosion, pitting, cracks, or sediment accumulation. Drones eliminate the need for human entry, cleaning, or scaffolding.
• Piping Systems and Ducts: The intricate networks of pipes and ventilation ducts across industrial sites can be challenging to access. Small drones can traverse these systems, identifying leaks, blockages, or structural damage.
• Structural Inspections: Inspection of overhead structures, trusses, and beams for fatigue cracks, loose bolts, or general wear and tear can be performed without extensive access equipment.

Infrastructure and Utilities

Critical national infrastructure relies on consistent monitoring and maintenance. Drones offer a new paradigm for these assessments.

• Bridges and Tunnels: Drones can inspect the undersides of bridges, culverts, and the interior of tunnels for structural defects, water ingress, or damage following seismic activity.
• Sewer Systems and Drains: While challenging due to dirty and often wet conditions, some specialized drones are being developed for inspecting large sewer lines for blockages, root ingress, or structural collapse.
• Power Plants (Internal Structures): Beyond boilers, drones inspect turbine halls, cooling towers (interior), and structural components within power generation facilities for wear, corrosion, or operational anomalies.

Mining and Construction

These sectors involve rugged environments where safety and efficiency are paramount.

• Mine Shafts and Tunnels: Drones can explore abandoned mine shafts or inspect active tunnels for rockfalls, structural integrity, or mapping purposes, significantly reducing risk to human surveyors.
• Construction Site Monitoring (Internal): During the construction phase of large buildings, drones can monitor progress in hard-to-reach areas, document quality control, or inspect HVAC systems before walls are sealed.
• Stockpile Volume Measurement: While often an outdoor application, drones can also be used in enclosed storage facilities (like warehouses for bulk materials) to accurately measure stockpile volumes.

Oil and Gas Sector

The inherent dangers and complexity of oil and gas operations make drone inspection particularly valuable.

• Oil Rigs (Internal Structures): Inspection of confined spaces, risers, and structural components within offshore and onshore oil rigs.
• Refineries and Petrochemical Plants: Inspection of numerous vessels, flare stacks (ground level), and complex piping networks for corrosion under insulation (CUI) or other defects.
• Pipelines (Internal Sections): For larger diameter pipelines, specialized drones can traverse sections to inspect for internal corrosion, pitting, or blockages, particularly in sections that are otherwise difficult to pig.

Micro-drones have emerged as a revolutionary tool for indoor inspection in confined spaces, offering unparalleled maneuverability and efficiency. These compact devices are particularly beneficial in areas that are difficult to access, such as industrial plants or building interiors. For those interested in exploring the latest technology trends, a related article discusses the best HP laptops of 2023, which can be essential for professionals working with advanced drone software and data analysis. You can read more about it here.

Future Developments and Research Directions

The field of micro-drones for confined space inspection is dynamic, with ongoing research and development focused on enhancing capabilities, autonomy, and payload versatility.

Enhanced Autonomous Navigation

Current systems often require operator intervention, particularly in complex or novel environments. The push is towards ever-increasing levels of autonomy.

• Advanced SLAM Algorithms: Research continues into more robust and efficient SLAM algorithms that can handle feature-poor environments, dynamic obstacles, and varying lighting conditions with greater precision and reliability.
• AI-Powered Obstacle Avoidance: Integrating artificial intelligence (AI) and machine learning (ML) techniques will allow drones to intelligently perceive and predict obstacles, differentiating between stationary structures and moving elements within the environment. This moves beyond simple proximity alerts to more sophisticated decision-making.
• Collaborative Drone Systems: The development of swarms or teams of micro-drones working collaboratively to map and inspect a large and complex confined space. This would involve inter-drone communication and coordinated task allocation. Imagine an army of robotic ants exploring an intricate underground hive.

Miniaturized and Advanced Sensor Payloads

The constraint of size and weight demands continuous innovation in sensor technology.

• Hyperspectral and Multispectral Imaging: These advanced imaging techniques can reveal material composition and subtle changes not visible to the human eye, identifying early signs of corrosion, chemical contamination, or material degradation.
• Miniaturized Non-Destructive Testing (NDT) Sensors: Research is underway to integrate miniature NDT sensors, such as eddy current probes for crack detection or miniature ultrasonic sensors for thickness measurement, directly onto micro-drones. This would allow for quantitative data beyond visual inspection.
• Gas and Chemical Sniffers: More sophisticated and miniaturized gas sensors capable of detecting a wider range of hazardous chemicals with higher precision and lower false-positive rates. This would enable real-time risk assessment.

Power and Endurance Improvements

The limited flight time of micro-drones remains a practical constraint, especially for large-scale inspections.

• Improved Battery Technology: Advances in battery chemistry (e.g., solid-state batteries) and energy density will lead to longer flight times without increasing weight.
• Wireless Charging: Development of practical wireless charging solutions for drones within confined spaces could allow for continuous operation through opportunistic charging “pads” deployed within the inspection area, or even through inductive charging as the drone flies past power sources.
• Tethered Options (Hybrid Approach): For some applications, particularly where communications are critical and long endurance is needed, a micro-drone might be tethered. This provides continuous power and a robust data link, albeit at the cost of some maneuverability.

Data Processing and Analytics

The sheer volume of data collected by these drones necessitates advanced processing and analytical tools.

• Automated Defect Detection: AI-powered image analysis algorithms will automatically identify potential defects (e.g., cracks, corrosion, hot spots) from the collected visual and thermal data, drastically reducing the time required for human review.
• Predictive Maintenance Integration: Integrating drone inspection data into predictive maintenance platforms. By continuously monitoring asset health, these systems can forecast potential failures, optimizing maintenance schedules and preventing costly downtime.
• Augmented Reality (AR) for Operators: Displaying real-time drone telemetry, 3D maps, and sensor overlays directly into the operator’s field of view via AR headsets, enhancing situational awareness and control.

Regulatory Landscape Evolution

As drone technology advances, regulations will need to adapt, particularly regarding autonomous flight and operation beyond visual line of sight (BVLOS) within industrial facilities.

• Standardization of Operation: Development of industry standards and best practices for commercial drone operation in confined spaces, addressing safety, data security, and operational procedures.
• Certifications for Autonomous Systems: Establishing certification processes for increasingly autonomous drone systems, ensuring their safety and reliability without constant human oversight.

The deployment of micro-drones for indoor inspection in confined spaces is not merely a technological novelty; it is a transformative tool. By acting as a remote eye and hand in dangerous or inaccessible areas, these drones are fundamentally altering inspection methodologies. They serve as guardians, venturing into hazardous environments so that human lives are not unduly risked. As their underlying technologies continue to mature, their capabilities will expand, solidifying their role as indispensable assets in industrial maintenance, safety, and infrastructure management.

FAQs

What are micro-drones used for in indoor inspections?

Micro-drones are used for inspecting confined indoor spaces that are difficult or dangerous for humans to access. They can navigate tight areas, capture high-resolution images or videos, and collect data for maintenance, safety checks, and structural assessments.

What features make micro-drones suitable for confined space inspections?

Micro-drones are small, lightweight, and highly maneuverable, allowing them to fly through narrow passages and complex environments. They often have advanced sensors, cameras, and obstacle avoidance systems to operate safely and effectively indoors.

How do micro-drones improve safety during indoor inspections?

By using micro-drones, inspectors can avoid entering hazardous or hard-to-reach areas, reducing the risk of injury. Drones can quickly gather visual and sensor data without exposing personnel to confined space dangers such as poor air quality, structural instability, or limited escape routes.

What types of industries benefit from using micro-drones for indoor inspections?

Industries such as oil and gas, manufacturing, power generation, construction, and infrastructure maintenance benefit from micro-drone inspections. These drones help inspect pipelines, tanks, machinery, ventilation systems, and other confined spaces efficiently and safely.

Are there any limitations to using micro-drones for indoor inspections?

Yes, micro-drones may face challenges such as limited battery life, signal interference indoors, and difficulty navigating extremely cluttered or dark environments. Additionally, operators require training to control drones precisely in confined spaces to avoid collisions or data loss.
